Active and preferred
RoHS Compliant

DF4-19MR20W3M1HF_B11

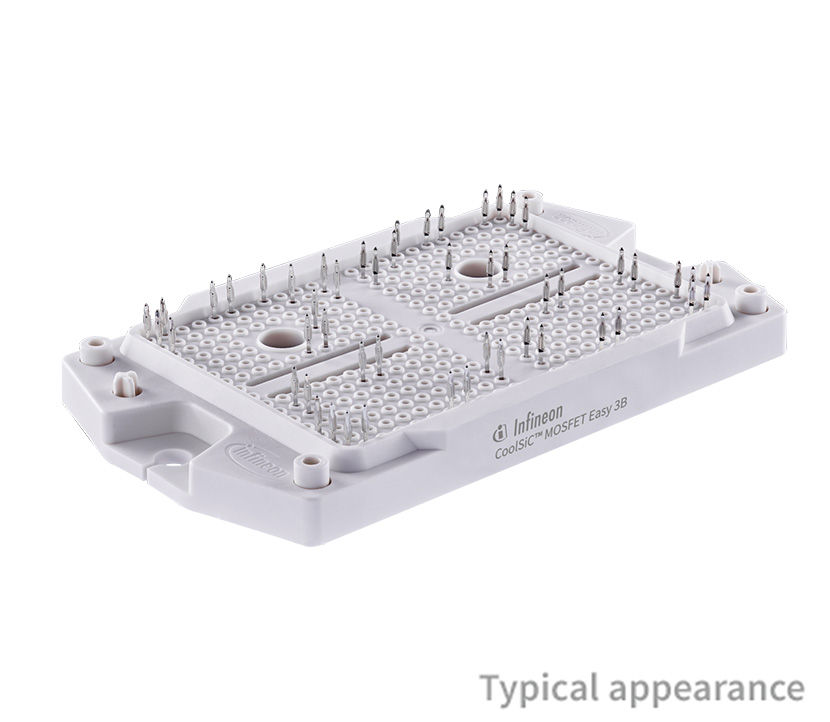

2000 V, 60 A Boost EasyPACK™ 3B CoolSiC™ MOSFET Module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DF4-19MR20W3M1HF_B11
DF4-19MR20W3M1HF_B11
ea.
Data Sheet

Product details

  • Applications
    Solar, UPS
  • Configuration
    Booster
  • Dimensions (length)
    109.9 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    Easy 3B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    19 mΩ
Recommended
OPN
DF419MR20W3M1HFB11BPSA1
Product Status active and preferred
Infineon Package AG-EASY3B
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY3B
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 3B CoolSiC™ MOSFET 2000 V 60 A Boost module with PressFit PIN and NTC.

Features

  • Best-in-class package: 12 mm height
  • 2000 V CoolSiC™ MOSFET
  • Gate drive vol.: +15…+18 V & 0…-5 V
  • Max. gate-source v.: +23 V & -10 V
  • Tvjop under overload cond. < 175°C
  • PressFIT pins
