Active and preferred
RoHS Compliant

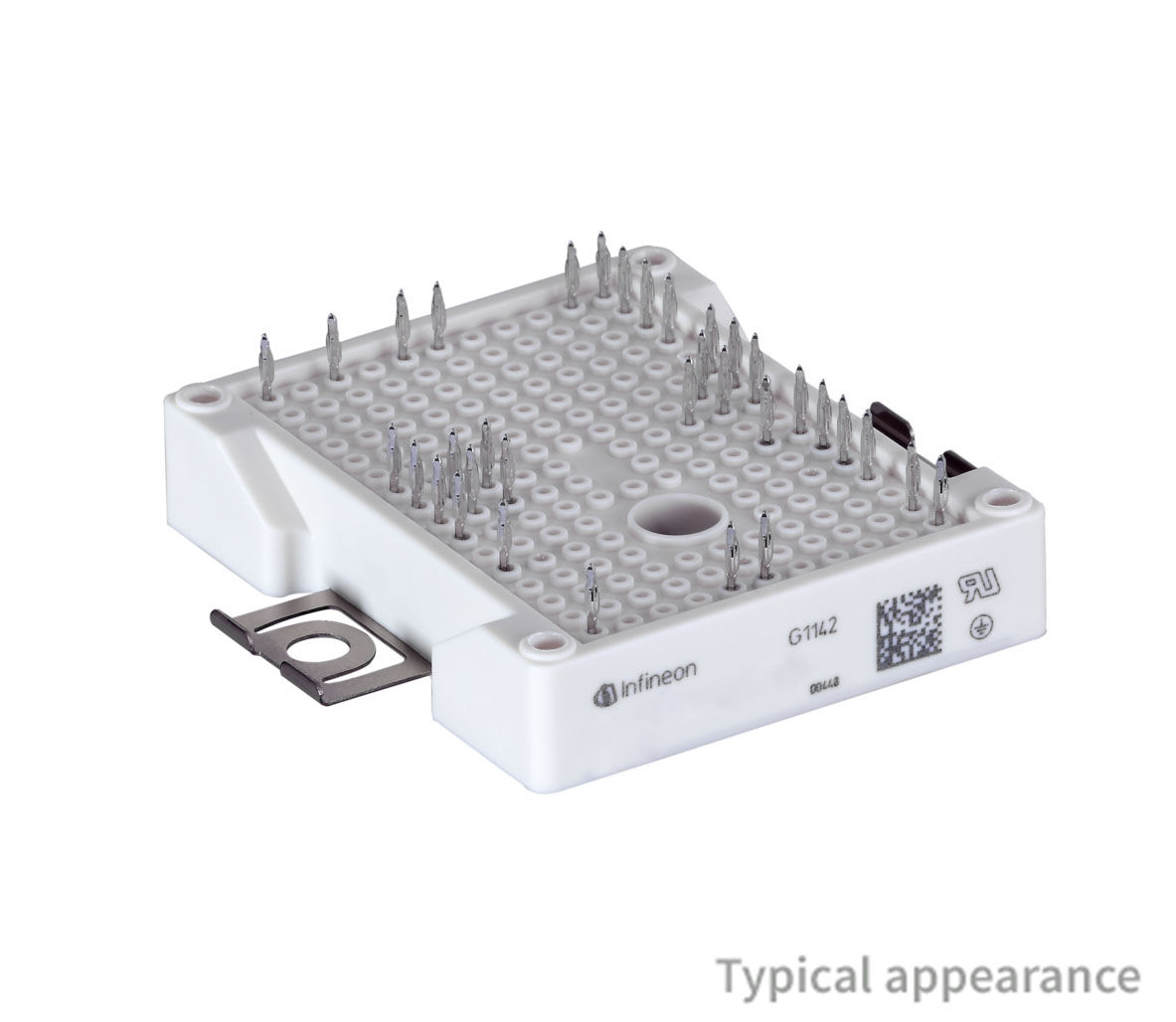

DF300R07W2H3_B77

650 V, 300 A 3-level IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DF300R07W2H3_B77
DF300R07W2H3_B77
ea.
Data Sheet

Product details

  • Configuration
    Booster
  • Features
    Booster, PressFIT
  • Housing
    EasyPACK™ 2B
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT HighSpeed 3
  • VCE(sat)
    1.68 V
  • VCES
    650 V
  • VF
    1.65 V
  • Voltage Class max
    650 V
Recommended
OPN
DF300R07W2H3B77BPSA1
Product Status active and preferred
Infineon Package AG-EASY2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 2B 650 V, 300 A 3-level IGBT module with Trench/Fieldstop IGBT H3 and rapid diode and PressFIT / NTC.

Features

  • Easy of use
  • Compact design
  • Optimized performance
  • Blocking voltage capability < 650 V
  • Low inductive design
  • Low switching losses
  • Low VCEsat
  • Al2O3 substrate
  • Compact design
  • PressFIT contact technology
  • Rugged mounting
  • Mounting clamp
