Active and preferred
RoHS Compliant

DF17MR12W1M1HF_B86

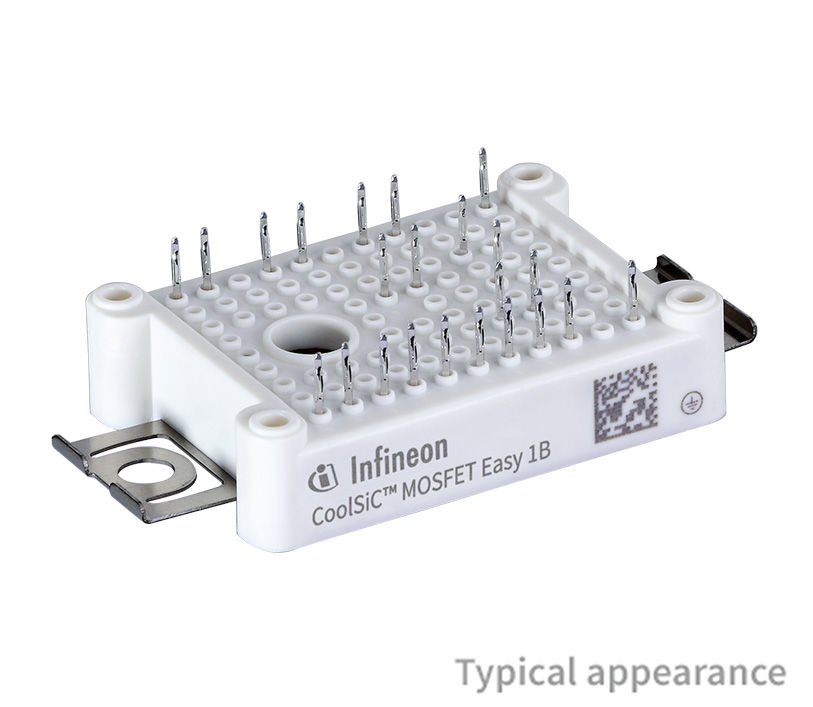

CoolSiC™ MOSFET Module booster 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DF17MR12W1M1HF_B86
DF17MR12W1M1HF_B86
ea.
Data Sheet

Product details

  • Applications
    Solar
  • Configuration
    Booster
  • Dimensions (width)
    33.8 mm
  • Dimensions (length)
    62.8 mm
  • Features
    PressFIT
  • Housing
    Easy 1B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    17 mΩ
Recommended
OPN
DF17MR12W1M1HFB86BPSA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 1B 1200 V, 33 mΩ and 1 MPPTs booster module with CoolSiC™ MOSFET enhanced generation 1, NTC and PressFIT Contact Technology.

Features

  •  Easy family with 12mm height
  • enhanced generation 1 trench technology
  • Very low module stray inductance
  • Gate-source voltages of +23 V and -10 V
  • Very low stray inductance
  • Overload capabilities up to 175°C
  • PressFIT pins

Benefits

  • Easy to design
  • Highest power density by lowest RDS
  • Outstanding module efficiency
  • A low FIT rate for cosmic ray induced fails

Applications

Photovoltaic
