Active and preferred
RoHS Compliant

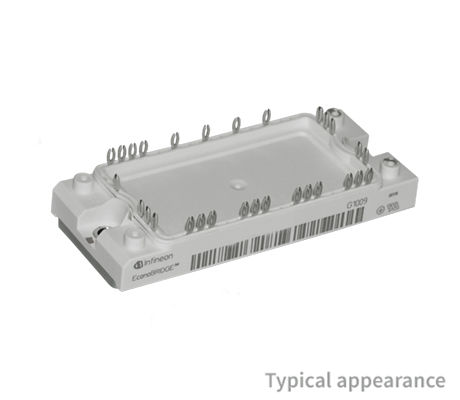

DDB6U180N16RRP_B37

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DDB6U180N16RRP_B37
DDB6U180N16RRP_B37
Data Sheet

Product details

  • Configuration
    Diode Bridges with Brake Chopper
  • Housing
    EconoBRIDGE™
  • I(FSM) max
    1600 A
  • IRMSM
    180 A
  • Voltage Class max
    1600 V
Recommended
OPN
DDB6U180N16RRPB37BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONO2B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
eupec™ EconoBRIDGE™ - 1600V Diode Bridge Modules in EconoPACK™2 housing with IGBT4 Brake Chopper, special pinning, pre-applied Thermal Interface Material and PressFIT contact technology for a more compact converter design.

Features

  • Tvj op = 150°C
  • Al(2)O(3) substrate
  • High power density
  • High mechanical robustness
  • Isolated base plate
  • PressFIT contact technology
  • Thermal interface mat. pre-applied
  • RoHS compliant

Applications
