DD700N22K

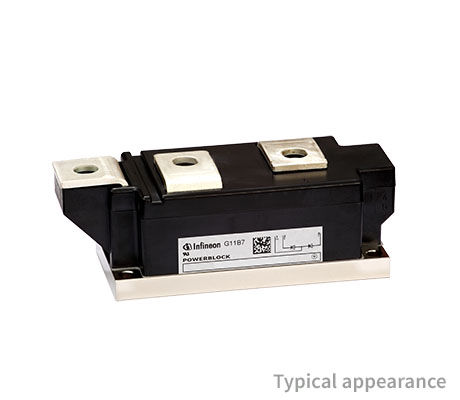

60 mm Rectifier Diode with 2200 V in pressure contact technology
Data Sheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD700N22K
DD700N22K
ea.
Data Sheet

Product details

  • Configuration
    Rectifier Diode
  • Housing
    60 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    700/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    19000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.19
  • RthJC [K/W] (@180° el sin)
    0.065
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    2200
  • VT0 [V] (@Tvj max)
    0.78
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1805
Recommended
OPN
DD700N22KHPSA3 DD700N22KXPSA1
Product Status active and preferred coming soon
Infineon Package BG-PB60AT-1 BG-PB60E2C-1
Package Name N/A N/A
Packing Size 2 2
Packing Type TRAY TRAY
Moisture Level NA NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB60AT-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status coming soon
Infineon Package BG-PB60E2C-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Rectifier Diode 60 mm Power Block 2200 V, 700 A module are designed and assembled with high reliable pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
  • High reliability
