DD600N18K
Active and preferred
RoHS Compliant
Lead-free

DD600N18K

60 mm Rectifier Diode with 1800 V in pressure contact technology
Datasheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD600N18K
DD600N18K
Datasheet


Product details

  • Configuration
    Rectifier Diode
  • Housing
    60 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    600/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    19000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.215
  • RthJC [K/W] (@180° el sin)
    0.078
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    1800
  • VT0 [V] (@Tvj max)
    0.75
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1800

Recommended
OPN
DD600N18KXPSA1 DD600N18KHPSA2
Product Status active and preferred discontinued
Infineon Package BG-PB60E2C-1 BG-PB60AT-1
Package Name N/A N/A
Packing Size 2 2
Packing Type TRAY TRAY
Moisture Level NA NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes No
RoHS Compliant Yes Yes
Country of Assembly (CoA)
HU
HU
Country of Diffusion (CoD)
DE
DE
Infineon stock last updated:
 ea. in stock
View replacement

Product Status
Active
Infineon Package BG-PB60E2C-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
HU
Country of Diffusion (CoD)
DE

Product Status discontinued
Infineon Package BG-PB60AT-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
HU
Country of Diffusion (CoD)
DE
View replacement

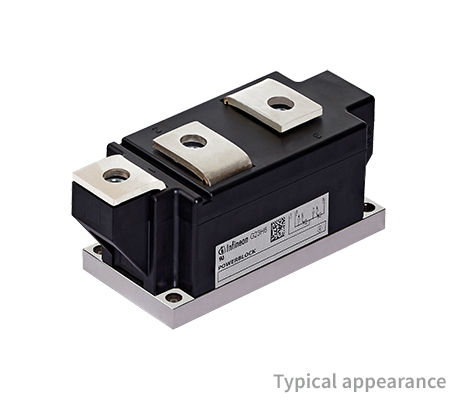

Rectifier Diode 60 mm Power Block 1800 V, 600 A module with high reliable pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
  • High reliability
