DD390N22S_TIM

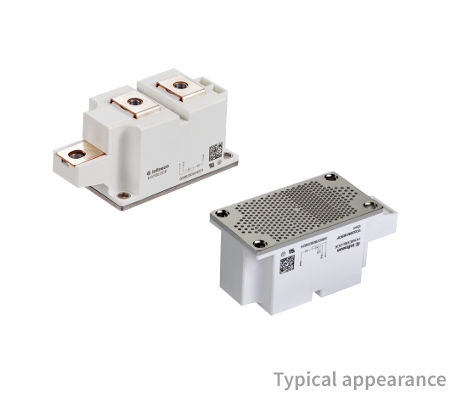

50 mm Rectifier Diode Module with 2200 V in solder bond technology
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD390N22S_TIM
DD390N22S_TIM
Data Sheet

Product details

  • Configuration
    Rectifier Diode
  • Features
    TIM
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    390/113
  • IFSM / ITSM [A] (@10ms, Tvj max)
    8400
  • Product Line
    Prime Block
  • rT [mΩ] (@Tvj max)
    0.3
  • RthJC [K/W] (@180° el sin)
    0.086
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    2200
  • VT0 [V] (@Tvj max)
    0.81
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    353
Recommended
OPN
DD390N22STIMHPSA1
Product Status active and preferred
Infineon Package
BG-PB50SB-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
BG-PB50SB-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Rectifier Diode 50 mm Prime Block 2200 V, 390 A module for phase control in solder bond technology with pre-applied Thermal Interface Material to achieve a reproductible thermal performance of power electronic systems.

Features

  • Solder bond technology
  • Industrial standard package
  • Highest current rating
  • 50 mm foot print

Applications
