Active and preferred
RoHS Compliant
Lead-free

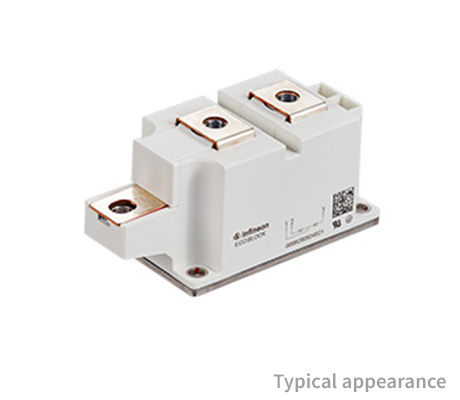

DD340N16S

50 mm Rectifier Diode Module with 1600 V in solder bond technology
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD340N16S
DD340N16S
ea.
Data Sheet

Product details

  • Configuration
    Rectifier Diode
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    330/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    8500
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    0.3
  • RthJC [K/W] (@180° el sin)
    0.086
  • Tvj [°C]
    130
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.81
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    385
Recommended
OPN
DD340N16SHPSA1
Product Status active and preferred
Infineon Package
BG-PB50SB-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
BG-PB50SB-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Rectifier Diode 50 mm Eco Block 1600 V, 340 A module for phase control in solder bond technology . If you need additional features or higher performance please also find our Power Block Diode modules for phase control with high reliable pressure contact technology : DD380N16K

Features

  • Solder bond technology
  • Industrial standard package
  • Electrically insulated base plate
  • Copper base plate
