Active and preferred
RoHS Compliant
Lead-free

DD180N16S

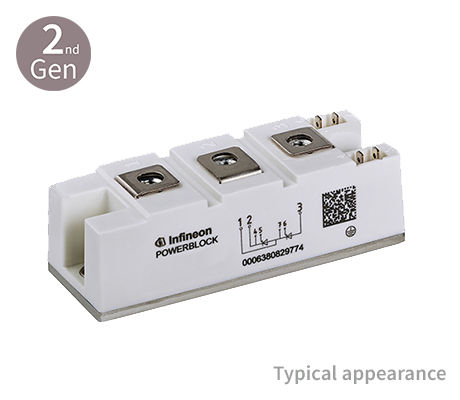

34 mm Rectifier Diode Module with 1600 V in solder bond technology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD180N16S
DD180N16S
ea.
Data Sheet

Product details

  • Configuration
    Rectifier Diode
  • Housing
    34 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    174/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    5750
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    0.95
  • RthJC [K/W] (@180° el sin)
    0.14
  • Tvj [°C]
    135
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.85
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    131.6
Recommended
OPN
DD180N16SHPSA1
Product Status active and preferred
Infineon Package BG-PB34SB-1
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB34SB-1
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Rectifier Diode 34 mm Eco Block 1600 V, 174 A module in solder bond technology . This is the second generation with increase current rating. If you need additional features or higher performance go to pressure contact technology .

Features

  • Industrial standard package
  • Electrically insulated base plate
