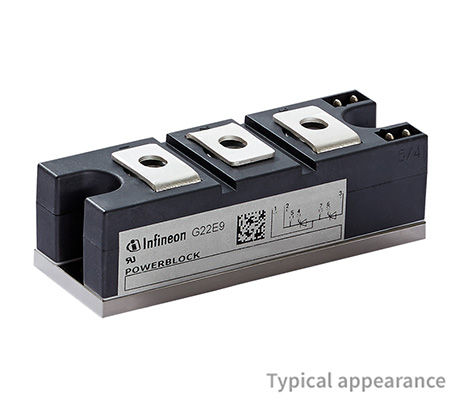

DD170N36K

34 mm Diode/Diode Module with 3600 V in pressure contact technology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD170N36K
DD170N36K
ea.
Data Sheet

Product details

  • Configuration
    Rectifier Diode
  • Housing
    34 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    170/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    4300
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    1.35
  • RthJC [K/W] (@180° el sin)
    0.2
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    3600
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    924.5
Recommended
OPN
DD170N36KHPSA1
Product Status active and preferred
Infineon Package BG-PB34AT-1
Package Name N/A
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB34AT-1
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
3600 V, 170 A 34 mm Power Block AMPT Diode module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness and reliability
