Active

DD1200S45KL3_B5

4500 V, 1200 A diodes IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD1200S45KL3_B5
DD1200S45KL3_B5
ea.
Data Sheet

Product details

  • Configuration
    Diodes
  • Dimensions (width)
    140 mm
  • Dimensions (length)
    130 mm
  • Features
    10.4kV isolation
  • Housing
    IHV
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial, Traction
  • Technology
    Diode
  • VCES / VRRM
    4500 V
  • VF (Tvj=25°C typ)
    2.5 V
  • Voltage Class max
    4500 V
Recommended
OPN
DD1200S45KL3B5NOSA1
Product Status active
Infineon Package A-IHV130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package A-IHV130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

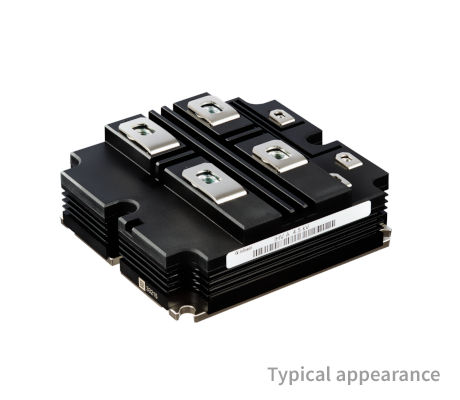

IHV 4500 V , 1200 A 130 mm Diode Module with EC3 - Diode, predestined to be combined with IGBT products (e.g. FZ1200R45KL3_B5 or FZ800R45KL3_B5 ).

Features

  • High DC stability
  • High surge current capability
  • Extended storage temperature
  • * down to T(stg) = -55°C
  • Package with CTI > 600
  • Package insulation 10.4 kV AC 1min
  • High creepage & clearance distances
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Dual Diode

Benefits

  • Standardized housing: 130x140x48 mm
  • decades of field experience
  • Long service life
  • Tough against overloads & faults
  • Low FIT Rate
