D1230N18T

Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D1230N18T
D1230N18T
ea.
Data Sheet

Product details

  • Clamping force [kn]
    6 to 15
  • Configuration
    Rectifier Diodes
  • Housing
    Disc dia 48mm height 14mm / Ceramic
  • I(FSM) max
    11800 A
  • IFAVM/TC [A/°C] (@180° el sin)
    1234/100
  • IFAVM/Tc
    1234/100 (180 ° el sin)
  • IFSM [A] (@10ms, Tvj max)
    11800
  • rT [mΩ] (@Tvj max) max
    0.28
  • RthJC [K/kW] (@180° el sin) max
    39
  • Tvj [°C] max
    180
  • VF/IF [V/kA] (@Tvj max)
    1.77/3.2
  • VRRM [V]
    1800
  • VRRM max
    1800 V
  • VT0 [V] (@Tvj max) max
    0.81
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    696
Recommended
OPN
D1230N18TXPSA1
Product Status active and preferred
Infineon Package BG-D4814K0-1
Package Name N/A
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-D4814K0-1
Package Name -
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

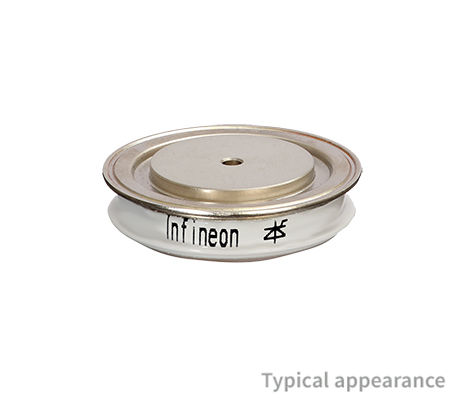

The D1230N Rectifier Diode discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 48mm and a height of 14mm.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • Hermeticaly sealed ceramic package
  • High case non-rupture current
