D1030N26T

2600 V rectifier diode disc
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D1030N26T
D1030N26T
Data Sheet

Product details

  • Clamping force [kn]
    10 to 24
  • Configuration
    Rectifier Diodes
  • Housing
    Disc dia 58mm height 26mm / Ceramic
  • I(FSM) max
    14500 A
  • IFAVM/TC [A/°C] (@180° el sin)
    1030/100
  • IFAVM/Tc
    1030/100 (180 ° el sin)
  • IFSM [A] (@10ms, Tvj max)
    14500
  • rT [mΩ] (@Tvj max) max
    0.28
  • RthJC [K/kW] (@180° el sin) max
    38
  • Tvj [°C] max
    160
  • VF/IF [V/kA] (@Tvj max)
    2.05/4.0
  • VRRM [V]
    2600
  • VRRM max
    2600 V
  • VT0 [V] (@Tvj max) max
    0.82
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1051
Recommended
OPN
D1030N26TXPSA1
Product Status active and preferred
Infineon Package BG-D5726K-1
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-D5726K-1
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

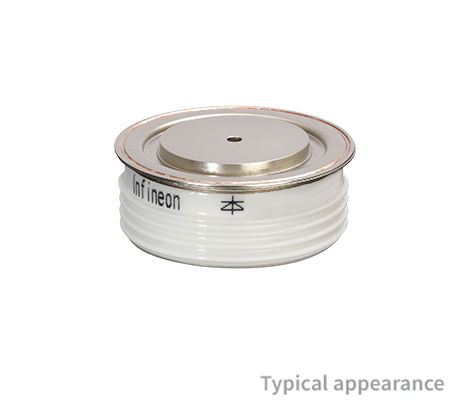

Rectifier Diode 2600 V, 1030 A with 58 mm diameter in a ceramic housing.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • Hermeticaly sealed ceramic package
  • High case non-rupture current
