Active and preferred
RoHS Compliant
Lead-free

CYW89459

RSDB Wi-Fi 5 and Bluetooth® 5.3 Combo for Automotive Applications
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW89459
CYW89459

Product details

  • Bluetooth Capability
    5.1
  • Bluetooth Interface
    UART
  • Bluetooth Specification
    5.4
  • Driver Support
    Linux, Android
  • Operating Temperature
    -40 °C to 85 °C
  • Wi-Fi Capability
    2x2 MIMO or RSDB 1x1 + 1x1
  • WI-FI Interface
    PCIe, SDIO
  • Wi-Fi Specification
    5
Recommended
OPN
CYW89459CUBGT
Product Status active and preferred
Infineon Package
SG-XFWLB-194
Package Name WLBGA-194 (002-23200)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-XFWLB-194
Package Name WLBGA-194 (002-23200)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

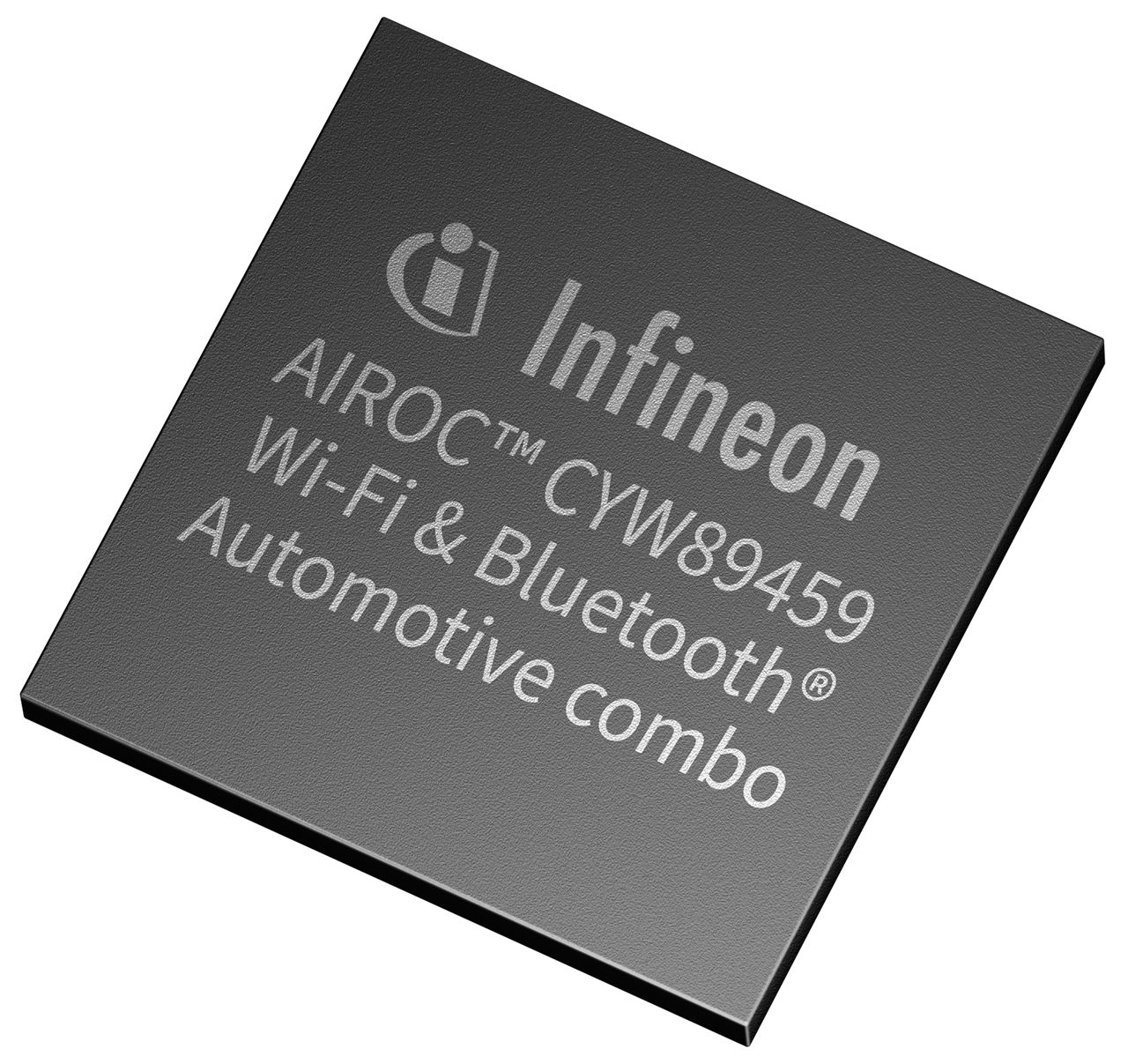

The AIROC™ CYW89459 single-chip device provides the highest level of integration for automotive wireless systems with integrated IEEE 802.11a/b/g/n/ac MAC/baseband/radio and Bluetooth® 5.3 (Basic Rate, Enhanced Data Rate and Bluetooth® Low Energy).

Features

  • Dual-band operation (2.4GHz, 5GHz)
  • Wi-Fi 5 (802.11ac) compliant
  • 2x2 MIMO or 1x1 + 1x1 RSDB operation
  • Integrated on-chip PAs
  • Integrated on-chip LNAs
  • Integrated on-chip PMU
  • Supported shared Wi-Fi and BT antenna

Applications
