CYW4373

Data Sheet
package
board
software
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW4373
CYW4373
ea.
Data Sheet

Product details

  • Antenna Configuration
    1x1
  • Bluetooth Interface
    UART/PCM
  • Bluetooth Specification
    Bluetooth 5.4
  • Core
    Cortex M3
  • CPU
    N/A
  • Dimensions
    5.43 x 4.51 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • GPIOs
    10
  • Launch Date
    2018
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Memory
    N/A
  • Operating system support
    Linux, Android, RTOS
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3.2 V to 4.8 V
  • Package
    WLCSP-128
  • Partner Module
    Y
  • Pitch
    0.4 mm
  • Planned to be available until at least
    01-09-2033
  • Product Description
    Wi-Fi 5 combo
  • ROM
    1088 KB
  • Software Support
    ModusToolbox™
  • SRAM
    384 kByte
  • Wi-Fi Band
    2.4GHz, 5GHz
  • Wi-Fi Bandwidth
    80 MHz
  • WI-FI Interface
    SDIO/SPI/PCIe/USB
  • Wi-Fi Specification
    Wi-Fi 5 (802.11ac)
Recommended
OPN
CYW4373IUBGT CYW43732XKUBGT CYW4373EUBGT
Product Status active and preferred active and preferred active and preferred
Infineon Package
SG-UFWLB-128
SG-UFWLB-128
SG-UFWLB-128
Package Name WLCSP-128 (002-17035) WLCSP-128 (002-17035) WLCSP-128 (002-17035)
Packing Size 5000 5000 5000
Packing Type TAPE & REEL TAPE & REEL TAPE & REEL
Moisture Level 1 1 1
Moisture Packing NON DRY NON DRY NON DRY
Lead-free Yes Yes Yes
Halogen Free Yes Yes Yes
RoHS Compliant Yes Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-UFWLB-128
Package Name WLCSP-128 (002-17035)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
SG-UFWLB-128
Package Name WLCSP-128 (002-17035)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package
SG-UFWLB-128
Package Name WLCSP-128 (002-17035)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

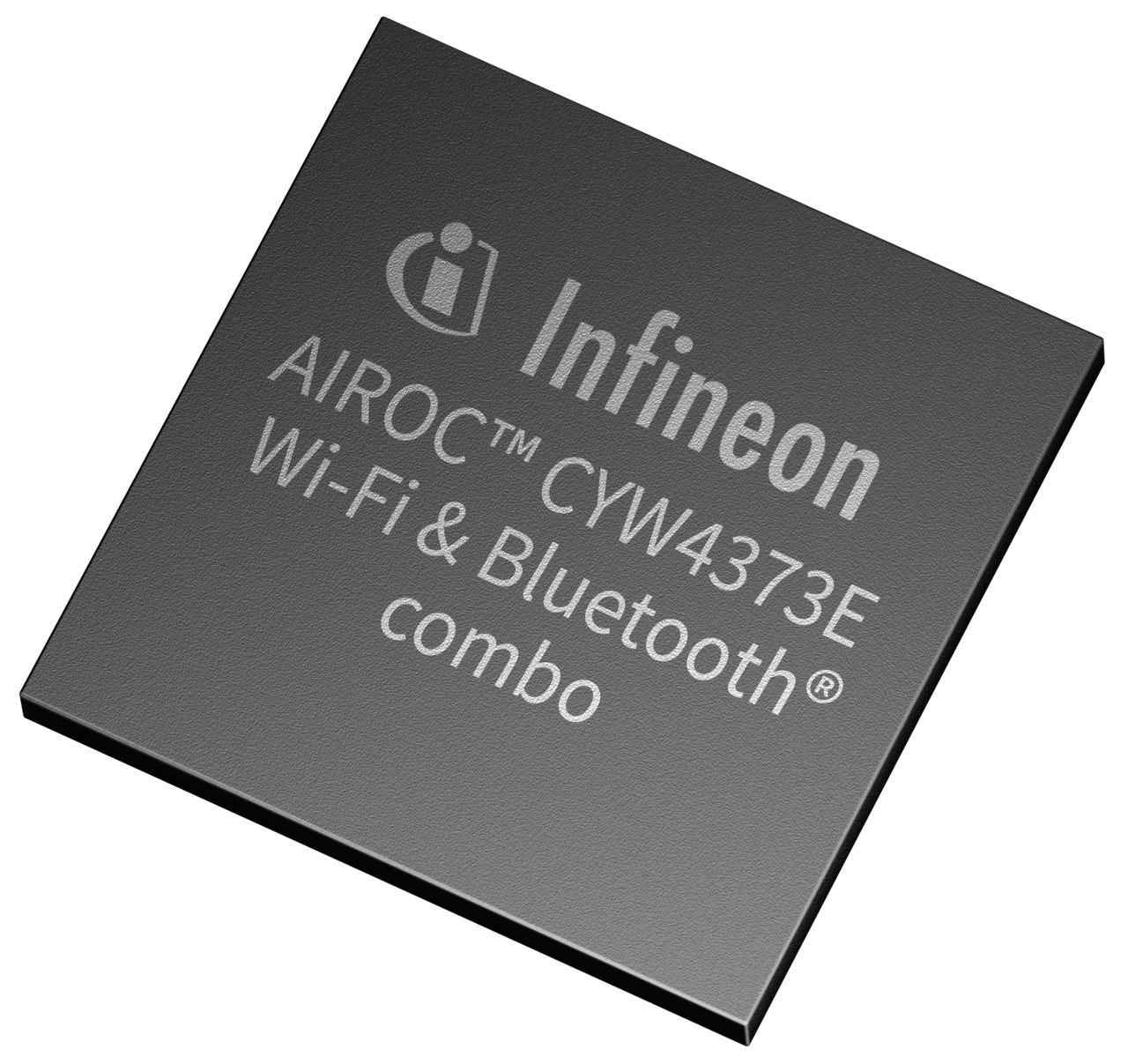

Infineon’s AIROC™ CYW4373/CYW4373E/CYW43732 single-chip combo device features 1x1 dual-band 2.4 GHz and 5 GHz Wi-Fi 5 (802.11ac) and Bluetooth® 5.4. CYW43743E offers extended temperature range (-40 to +85°C). The 43732 offers dedicated LNA for Wi-Fi and Bluetooth® subsystems with integrated 2.4 GHz and 5 GHz power amplifiers and low-noise amplifiers. All versions contain a USB hub and SDIO Wi-Fi host interfaces. CYW4373E also supports PCIe.

Features

  • Wi-Fi 5 (802.11ac) Dual-band (2.4/5 GHz)
  • 1x1 SISO
  • 20/40/80 MHz, up to 433Mbps PHY rate
  • Internal PA+LNA w/ External LNA support
  • Dual-Band ref design for increased range
  • 2.4-GHz Internal and 5-GHz Ext TR Switch
  • Class 1 (100m) & Class 2 (10m) operation
  • Option for separate BT ant (43732 only)
  • Host controller interface(HCI) over-UART
  • Declaration ID  D065388
  • QDID 228194

Benefits

  • Single USB interface for Wi-Fi/BT
  • Dedicated Bluetooth path for Coex
  • Multi-layer security protection
