Active
RoHS Compliant

CYW43455

Data Sheet
package
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW43455
CYW43455
ea.
Data Sheet

Product details

  • Antenna Configuration
    1x1
  • Bluetooth Interface
    UART/PCM
  • Bluetooth Specification
    Bluetooth 5.3
  • Core
    Cortex M3
  • CPU
    N/A
  • Dimensions
    4.47 × 5.27 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • GPIOs
    15
  • Memory
    N/A
  • Operating system support
    Linux, RTOS
  • Operating Temperature
    -30 °C to 85 °C
  • Operating Voltage
    3 V to 5.25 V
  • Package
    WLCSP-140
  • Partner Module
    Y
  • Pitch
    0.4 mm
  • Product Description
    Wi-Fi 5 combo
  • Replacement
    CYW4373
  • ROM
    845 KB
  • SRAM
    270 kByte
  • Wi-Fi Band
    2.4GHz, 5GHz
  • Wi-Fi Bandwidth
    80 MHz
  • WI-FI Interface
    SDIO
  • Wi-Fi Specification
    Wi-Fi 5 (802.11ac)
Recommended
OPN
CYW43455XKUBGT
Product Status active
Infineon Package
SG-XFWLB-140
Package Name WLCSP-140 (002-13193)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-XFWLB-140
Package Name WLCSP-140 (002-13193)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

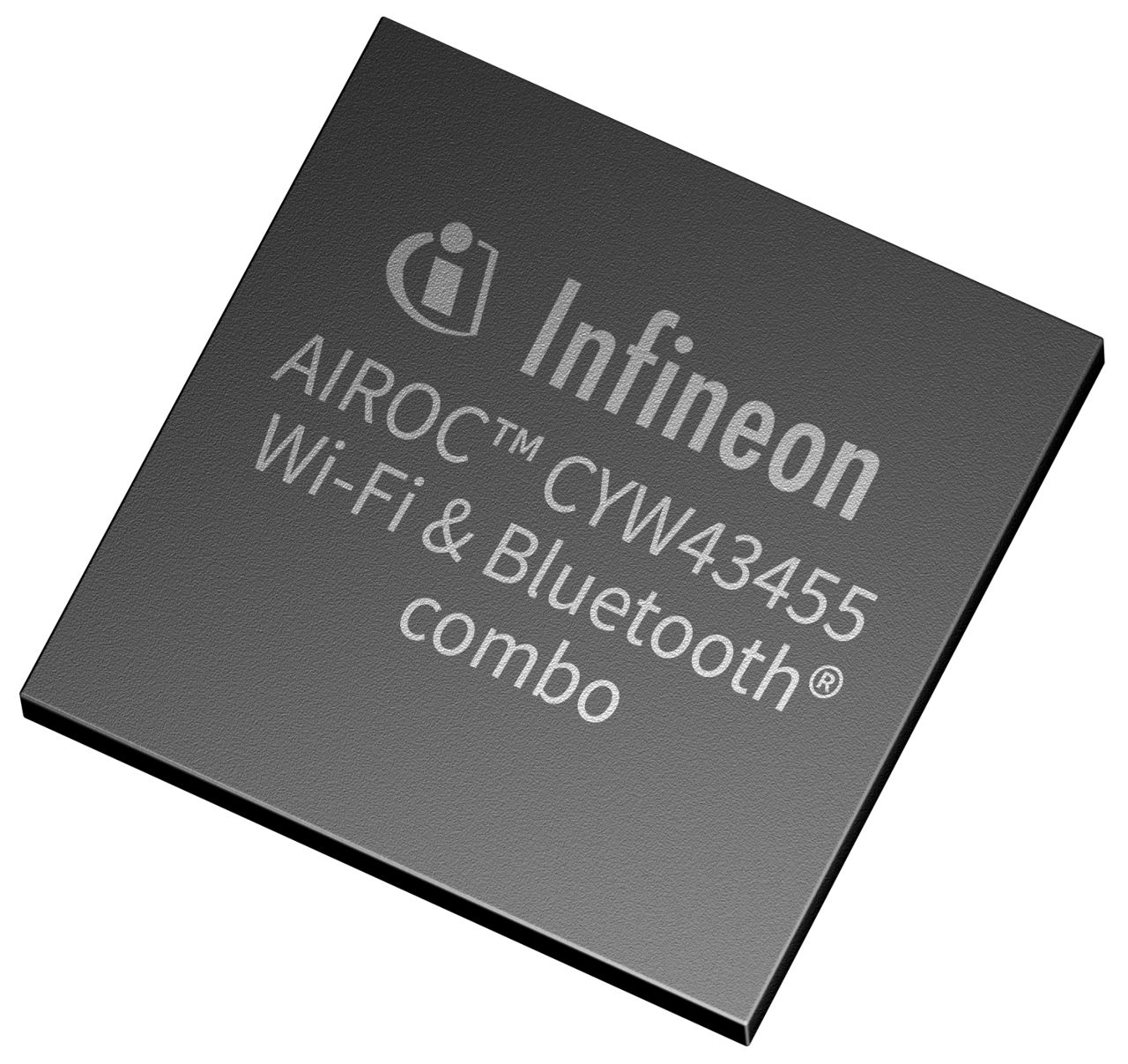

Infineon’s AIROC™ CYW43455 single-chip combo device features 1x1 dual-band 2.4 GHz and 5 GHz Wi-Fi 5 (802.11ac) and Bluetooth® 5.3. The WLAN operation supports rates of MCS0–MCS9 (up to 256 QAM) in 20 MHz, 40 MHz, and 80 MHz channels for data rates of up to 433.3 Mbps. Included on-chip are 2.4 GHz and 5 GHz transmit amplifiers and receive low-noise amplifiers. Optional external PAs and LNAs are also supported.

Features

  • Wi-Fi 5 (802.11ac) Dual-band (2.4/5 GHz)
  • 1x1 SISO
  • 20/40/80 MHz, up to 433Mbps PHY rate
  • Internal PA+LNA w/ External LNA support
  • 2.4-GHz Internal and 5-GHz Ext TR Switch
  • SDIO v3.0 host interface
  • Option for separate BT antenna
  • Host controller interface(HCI)-over-UART
  • WPA2

Diagrams

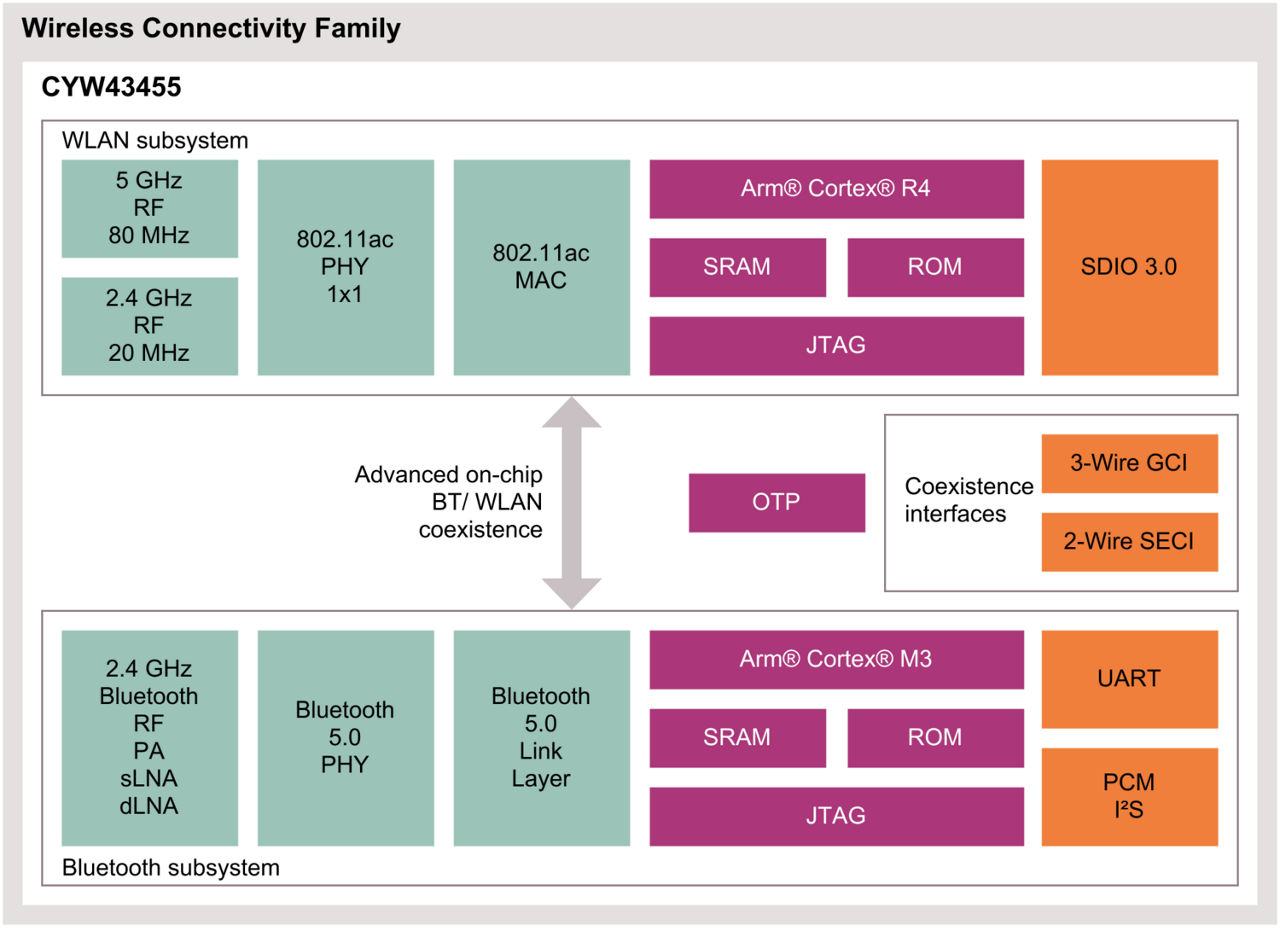

CYW43455 Block Diagram
CYW43455 Block Diagram
CYW43455 Block Diagram CYW43455 Block Diagram CYW43455 Block Diagram
×
