Active and preferred
RoHS Compliant
Lead-free

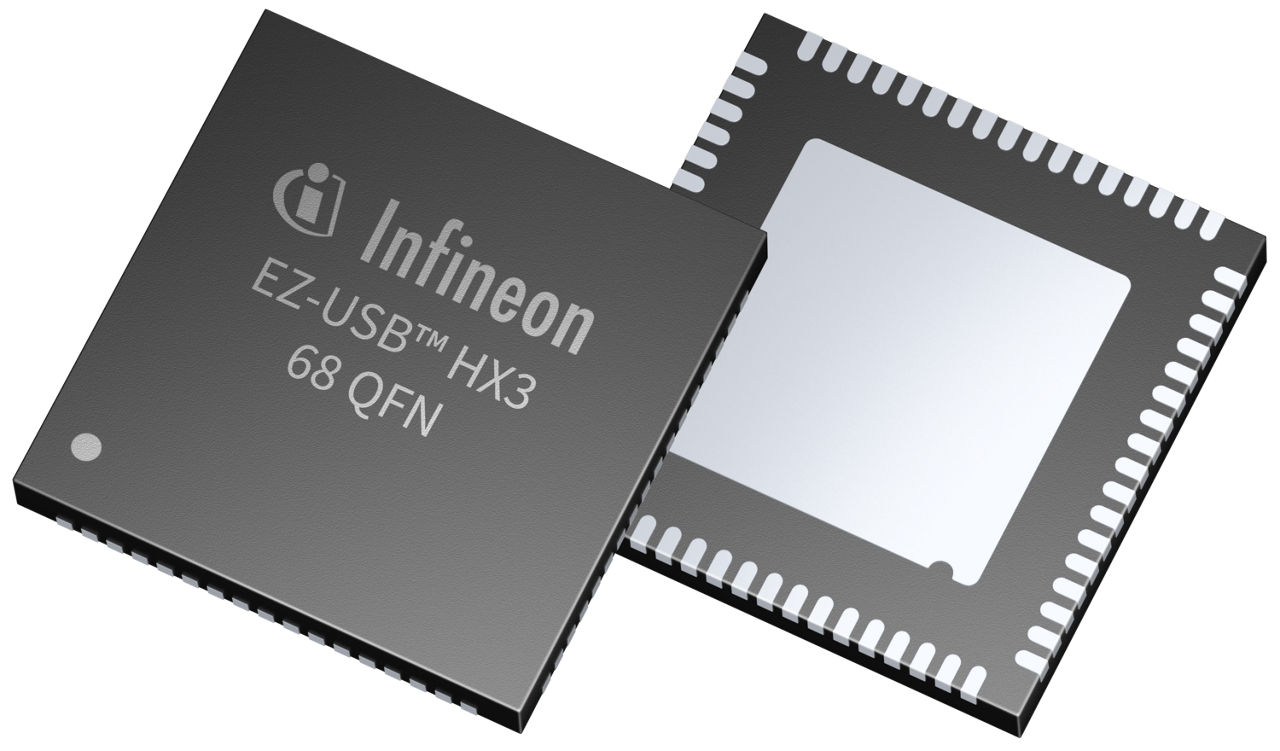

CYUSB2302-68LTXS

Automotive two-ports USB hub controller, tray packing
Data Sheet
package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSB2302-68LTXS
CYUSB2302-68LTXS
Data Sheet

Product details

  • # of DS ports
    2
  • # of US ports
    1
  • Applications
    Cockpit domain controller, Head unit, In-vehicle infotainment
  • Family
    EZ-USB™ HX3 Auto
  • Features
    Shared Link™, Ghost charge™
  • Operating Temperature range
    -40 °C to 105 °C
  • Operating Voltage range
    3 V to 3.6 V
  • Package Type
    68-pin QFN
  • Product Category
    Hub Controllers
  • Product Description
    Automotive USB 2.0 Hub
  • Software Tools
    Yes
  • Temperature grade
    Automotive Grade-S
  • USB Speed
    480 MBit/s
  • USB Standard
    USB 2.0 HS
Recommended
OPN
CYUSB230268LTXSXQLA1
Product Status active and preferred
Infineon Package
PG-VQFN-68
Package Name QFN-68 (001-78925)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-68
Package Name QFN-68 (001-78925)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
EZ-USB™ HX3 Automotive is a family of USB 480 Mbps (high-speed) hub controllers compliant with the USB 3.1, Gen 1 specification. It supports USB 480 Mbps (high-speed), 12 Mbps (full-speed), and 1.5 Mbps (low-speed) on all the ports.

Features

  • AEC-Q100 compliance
  • USB 480 Mbps
  • Two downstream ports
  • Ganged port power control
  • Battery charging v1.2
  • Apple charging
  • Multi transaction translator
  • I2C serial communication
  • ARM® Cortex® M0 MCU
  • Driver strength control
  • 68-QFN package
  • Tray packing

Benefits

  • USB-IF compliance
  • AEC-Q100 qualified
  • Robust interoperability
  • Enhanced connectivity & flexible design
  • Driver strength control
  • Interface to PD controller
  • Hub FW update via PD controller
