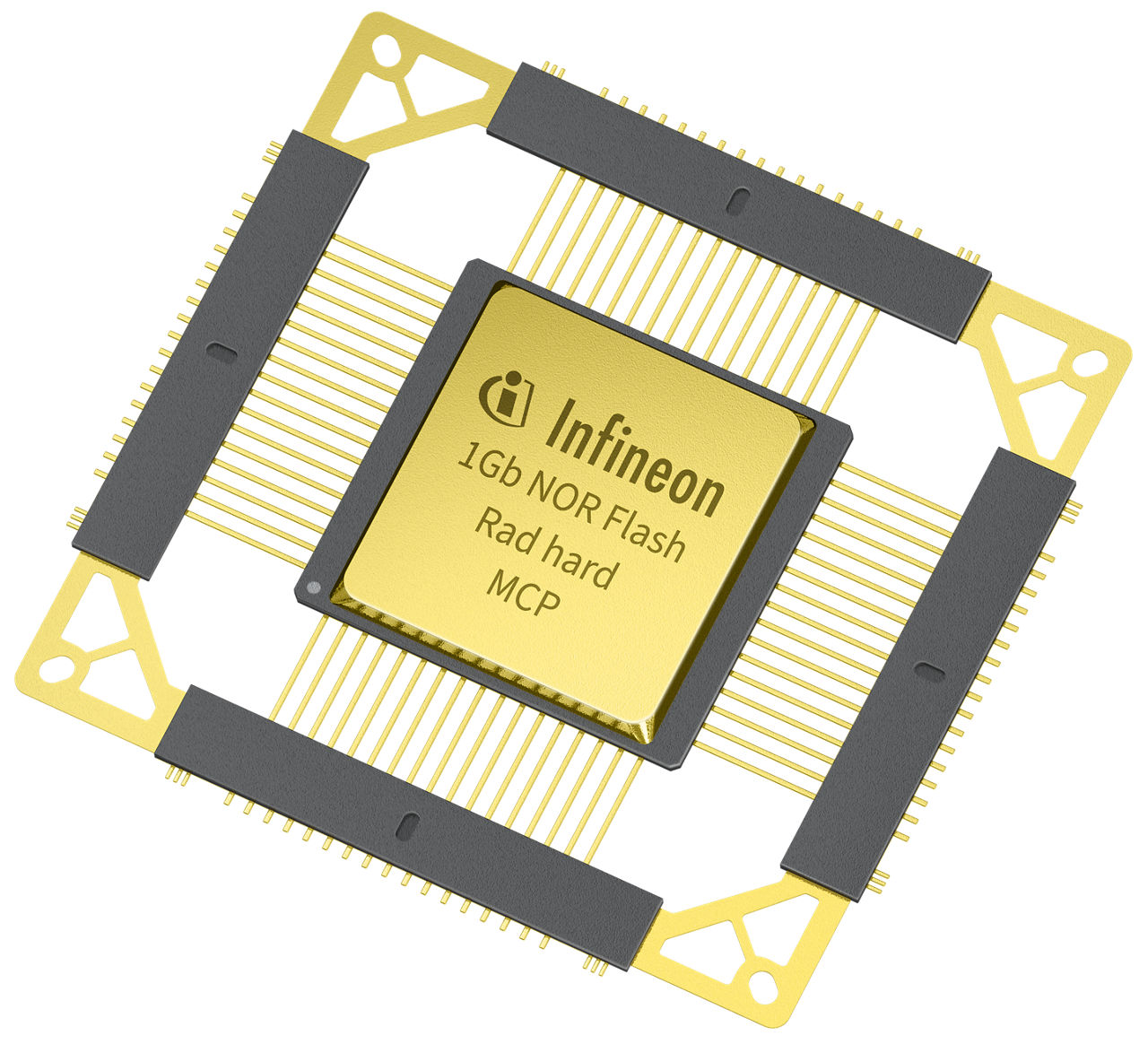

CYRS17B01G-133UZMB

NEW
Infineon offers the space industry’s first QML qualified, radiation hardened by design, quad SPI (QSPI) NOR Flash.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYRS17B01G-133UZMB
CYRS17B01G-133UZMB
Data Sheet

Product details

  • Density
    1 GBit
  • Device weight
    9600 mg
  • Family
    NOR
  • Frequency
    133 MHz
  • Interfaces
    QSPI
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2.97 V to 3.63 V
  • Organization (X x Y)
    x4
  • Planned to be available until at least
    2035
  • Qualification
    Military
OPN
CYRS17B01G133UZMBBDSA1
Product Status coming soon
Infineon Package CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package CG-FP-68
Package Name FLATPACK-68 (002-31076)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon has expanded its line of radiation hardened NOR flash memory products, which offer the best combination of performance, density, and resistance to radiation and single event effects (SEE). Ideal for storing boot code and configuration images for space FPGAs.

Features

  • 1Gbit density, QSPI at 125MHz
  • 10k cycle write/ infinite read endurance
  • 10-year data retention @ 125ºC
  • 1.8 V / 3.3 V I/O support
  • 68-pin CQFP package
  • DLAM qualified 5962 coming soon
  • Radiation performance
  • TID > 300krad
  • SEU IMMUNE
  • SEL > 80 LET MeV.cm2/mg [LET]
  • SEFI 2.77e-5 err/dev.day

Benefits

  • Compatible with 512M rad-hard NOR Flash
  • DLAM QML qualified
  • Superior radiation performance
  • Fast boot for space-grade FPGAs

Applications
