CYPM1216-68LQXIT

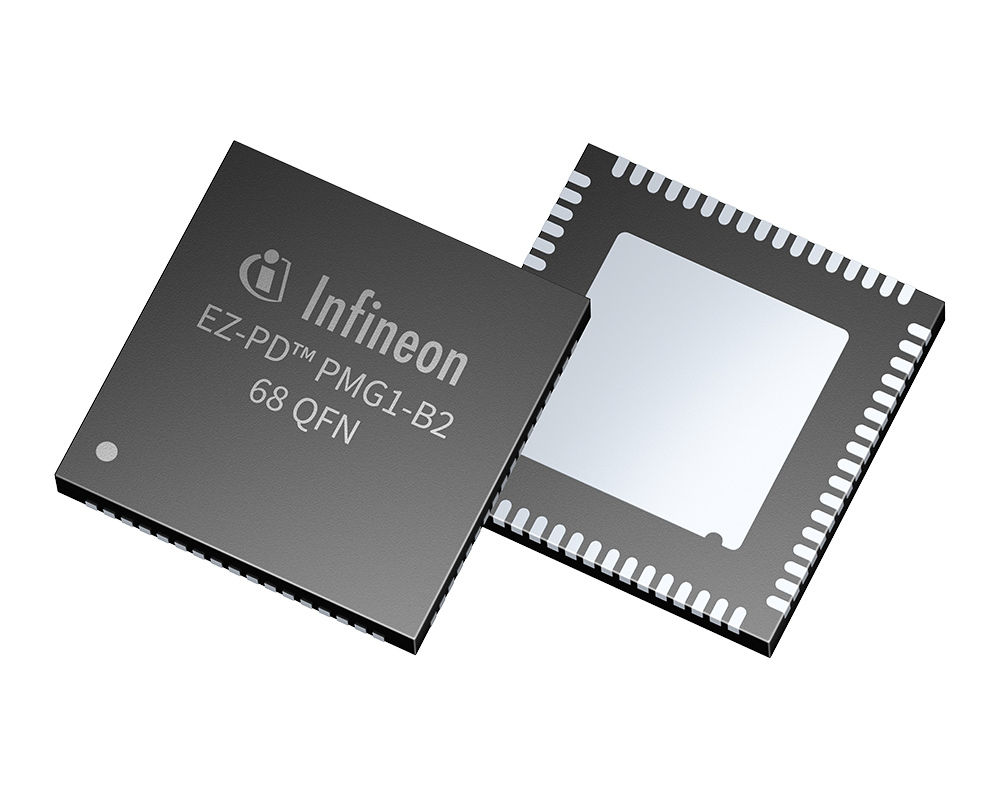

EZ-PD™ PMG1-B2 is an integrated single-port USB -C PD + DC-DC charge controller (tape & reel)
Datasheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPM1216-68LQXIT
CYPM1216-68LQXIT
Datasheet


Product details

  • Applications
    Power tools, Vacuum cleaner, Portable electronics, Wireless speakers
  • Battery series
    2S to 12S
  • Family
    EZ-PD™ PMG1-B2
  • Flash
    128 kByte
  • GPIOs
    8
  • Operating Temperature range
    -40 °C to 105 °C
  • Operating Voltage range
    4.5 V to 60 V
  • Package Type
    68-pin QFN
  • Processor Type
    ARM® Cortex®-M0
  • Product Description
    MCU with integrated buck-boost control
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • SRAM
    8 kByte
  • Temperature grade
    Industrial
  • USB Standard
    USB-PD 3.2

OPN
Product Status on request
Infineon Package PG-TQFN-68
Package Name N/A
Packing Size N/A
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
TW
Country of Diffusion (CoD)
US

Product Status on request
Infineon Package PG-TQFN-68
Package Name -
Packing Size 0
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
TW
Country of Diffusion (CoD)
US
EZ-PD™ PMG1-B2 CYPM1216-68LQXIT is the tape and reel packing option of Infineon’s highly integrated single-port USB -C power delivery (PD) solution with the integrated buck-boost charge controller.

Features

  • Support USB-C PD v3.2 EPR
  • Support source/sink DRP role
  • 55 V Buck-boost charge controller
  • 1-cell to 12-cell battery charge
  • Constant current (CC) mode charging
  • Fault protections (OVP, UVP, SCP)
  • 32-bit Arm® Cortex®-M0 processor
  • 128 KB Flash, 8 KB SRAM
  • Integrated TCPWMs, SCBs, ADCs
  • 68-QFN (8x8) with 0.4 mm pitch
  • Dedicated SDK & software suite
  • Packaging: tape and reel

Benefits

  • Reduced BOM and board area
  • Simplified customization and development
  • Highligh programmable solution
  • Fully interoperable USB-C PD stack
  • Hardware protection
