CYPD8225-97BZXIT

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPD8225-97BZXIT
CYPD8225-97BZXIT
Data Sheet

Product details

  • # of ports
    Dual
  • Applications
    Desktops, Notebooks
  • Family
    EZ-PD™ CCG8
  • Flash
    256 kByte
  • GPIOs
    50
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    2.8 V to 30 V
  • Package Type
    97-ball BGA
  • Processor Type
    Arm® Cortex® M0+
  • Product Category
    PD controllers
  • Product Description
    Dual port Type-C controller
  • Protection features (OVP, OCP, SCP and ESD)
    N
  • Software Tools
    ModusToolbox™
  • SRAM
    32 kByte
  • Temperature grade
    Industrial
  • USB Standard
    USB-PD 3.1
  • VBUS Short Protection
    Y
  • VCONN FET
    Y
Recommended
OPN
CYPD8225-97BZXIT
Product Status active and preferred
Infineon Package
PG-VFBGA-97
Package Name VFBGA-97 (002-31241)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VFBGA-97
Package Name VFBGA-97 (002-31241)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

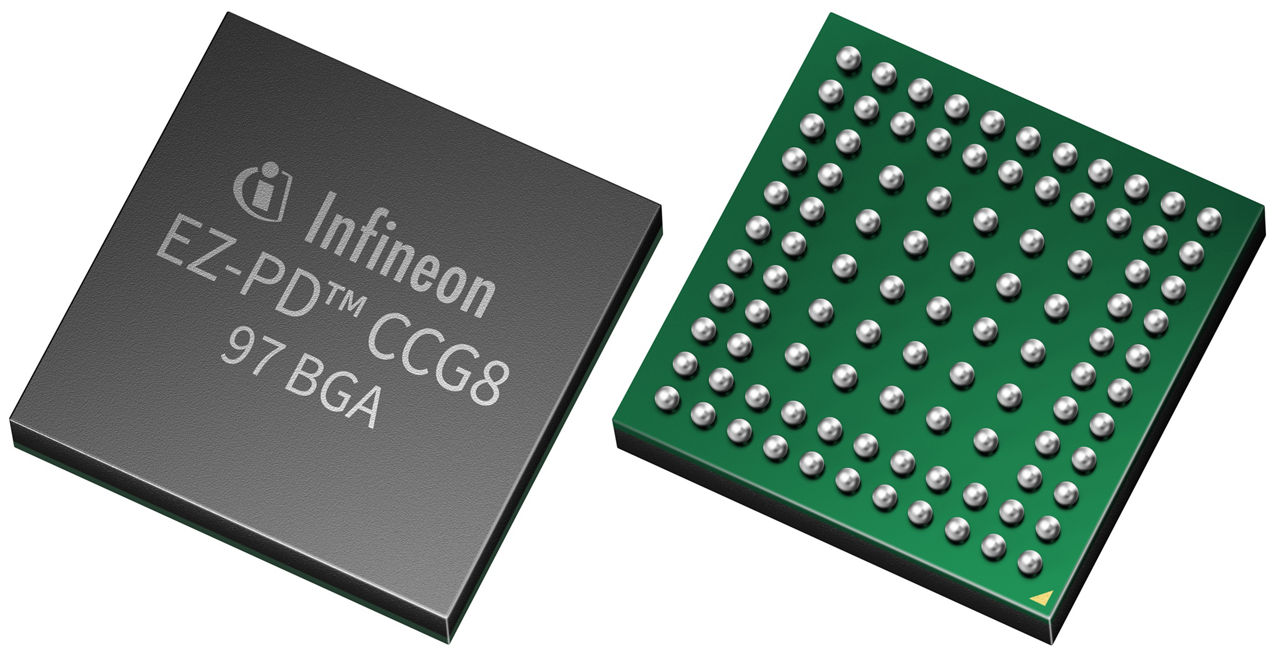

CYPD8225-97BZXI is the dual port 97-BGA tape and reel packing option of EZ-PD™ CCG8 family of USB-C port controllers. It complies with the latest USB -C and Power Delivery (PD) specifications. EZ-PD™ CCG8 provides a complete USB Type-C and USB PD port control solution for PCs and notebooks, including a discrete N-channel field effect transistor (NFET) gate driver with fault protection and slew rate, and it supports extended power range (EPR) up to 28 V without the need of any external components. EZ-PD™ CCG8 CYPD8225-97BZXI is only available on demand, please contact us here to place your request or receive more information.

Features

  • USB Type-C and Power Delivery 3.1 with EPR up to 28V supporting USB3 and USB4, Thunderbolt, DisplayPort Alternate Mode platforms
  • 32-bit, 48 MHz Arm® Cortex®-M0 Plus processor with integrating a complete Type-C transceiver including the Type-C termination resistors Rp, Rd, and dead battery Rd termination
  • Integrated load switch controller for driving NFETs on VBUS provider path
  • Slew rate controlled turn-on the VBUS provider path
  • Configurable hardware-controlled VBUS overvoltage, undervoltage, overcurrent, short circuit, reverse current protection, and thermal shutdown
  • VBUS high-side current sense amplifier capable of measuring current across 5-ohms series resistance on the provider path
  • Integrated 3:1 SBU Muxes for Alternate modes and closed chasis debug
  • Integrated digital blocks
  • Four timers, counters, PWMs, and up to 23 GPIOs
  • Four SCBs for configurable master/slave I²C, SPI or UART
  • Integrated analog blocks
  • Integrated high-voltage 28 V-regulator
  • VCONN FETs
  • High-side current sense amplifier across 5 ohms
  • VBUS discharge NFET
  • System-level fault protection
  • Over-current, over-voltage, under-voltage, reverse-current and short-circuit protection on VBUS provider path
  • VCONN over-current protection
  • Package: 97-BGA (6x6 mm)
  • Packing type: tape and reel

Benefits

  • Highly integrated Dual/Single port USB-C PD controller with 28V EPR integrated and up to 48 V with external BOM
  • Ideal for EPR based DRP solution

Applications
