Active and preferred
RoHS Compliant
Lead-free

CY15V116QN-40BKXA

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY15V116QN-40BKXA
CY15V116QN-40BKXA
Data Sheet

Product details

  • Density
    16 MBit
  • Family
    Excelon™
  • Frequency
    40 MHz
  • Interfaces
    SPI
  • Lead Ball Finish
    Sn/Ag/Cu
  • Operating Temperature range
    -40 °C to 85 °C
  • Operating Voltage range
    1.71 V to 1.89 V
  • Organization (X x Y)
    2Mb x 8
  • Peak Reflow Temp
    260 °C
  • Planned to be available until at least
    2033
  • Qualification
    Automotive(A)
Recommended
OPN
CY15V116QN-40BKXA
Product Status active and preferred

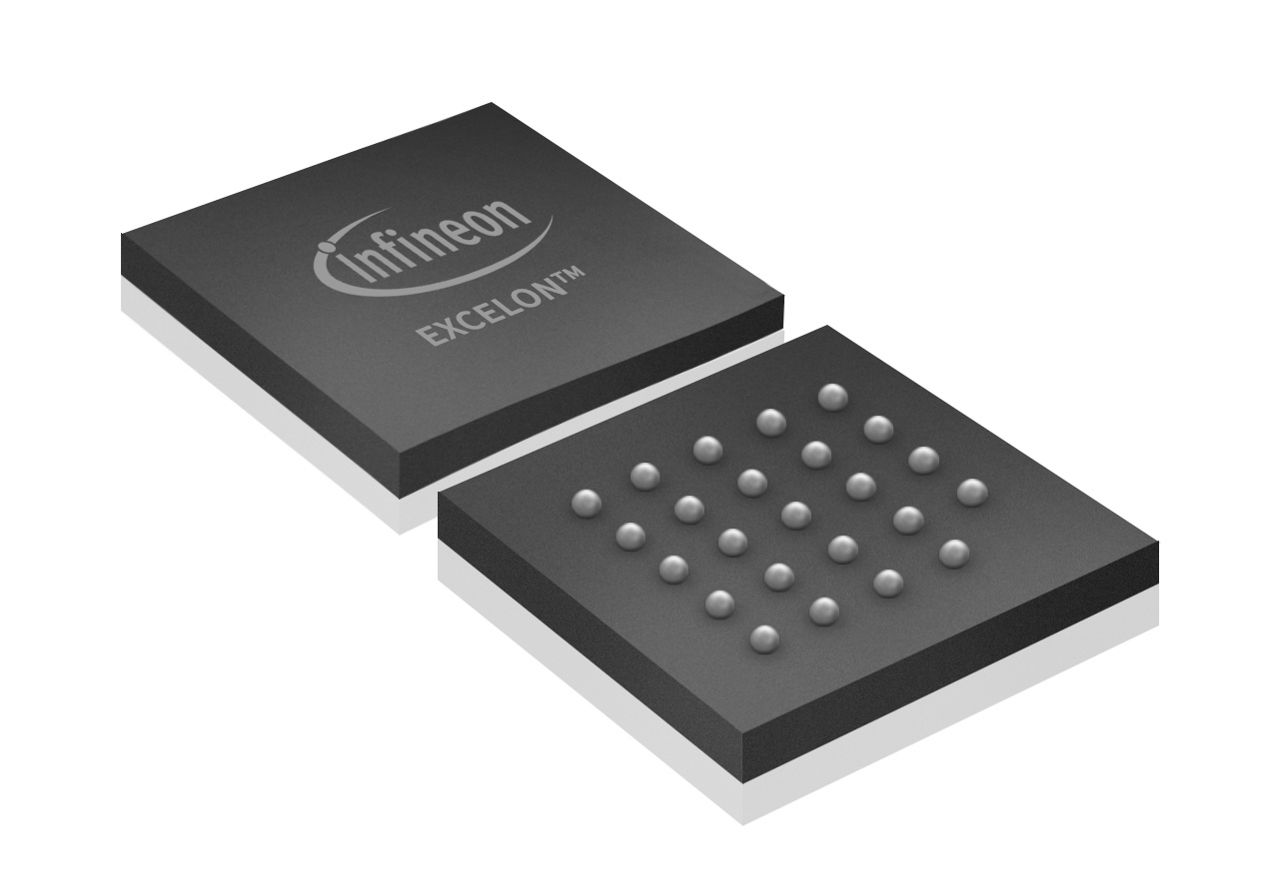

Infineon Package
PG-BGA-24
Package Name FBGA-24 (001-97209)
Packing Size 480
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-BGA-24
Package Name FBGA-24 (001-97209)
Packing Size 480
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The CY15V116QN-40BKXA is a 16-Mbit EXCELON™ Auto Ferroelectric RAM (F-RAM) with a 2048K × 8 organization and high-speed SPI interface up to 40 MHz. Operating from 1.71 V to 1.89 V and qualified to AEC-Q100 Grade 3 for -40°C to +85°C, it delivers instant non-volatile writes at bus speed, virtually unlimited 100 trillion read/write cycles, and 151-year data retention.

Features

  • 16-Mbit F-RAM, 2048K × 8 organization
  • Virtually unlimited 10^14 read/write cycles
  • 151-year data retention
  • Up to 40 MHz SPI bus operation
  • Supports SPI Mode 0 and Mode 3
  • Hardware and software write protection
  • Unique device ID and serial number
  • Dedicated 256-byte special sector
  • Deep Power-down and Hibernate modes
  • Low active (2.7 mA), standby (14 µA) current
  • Input/output leakage <1 µA
  • Fast, instant non-volatile writes

Benefits

  • Reliable data even after 151 years
  • No write delays, instant data storage
  • Handles frequent, rapid data logging
  • Low power extends battery/system life
  • Enhanced security with write protection
  • Unique ID enables device traceability
  • Special sector survives reflow soldering
  • High-speed SPI simplifies integration
  • Drop-in replacement for serial EEPROM/flash
  • Hibernate/DPD modes reduce standby power
  • Consistent performance over device lifetime
  • Easy system identification and tracking

Applications
