BTS50025-1TEA

BTS50025-1TEA is a 2.5 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TO-252-5-11 package, with protective functions & diagnosis
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS50025-1TEA
BTS50025-1TEA
ea.
Data Sheet

Product details

  • Channels
    1
  • Diagnostics
    Sense
  • Family
    Power PROFET™ 12V
  • IL (Short Circuit Current)
    60 A
  • Load Current
    26 A
  • Mounting
    SMD
  • Nominal Load Current per channel
    26 A
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2035
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    2.7 mΩ
  • Recommended Operating Voltage
    3.1 V to 27 V
  • toff (Turn OFF time) max
    450 µs
  • ton (Turn ON time) max
    250 µs
Recommended
OPN
BTS500251TEAAUMA1
Product Status active and preferred
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
It features Reverse ON functionality protecting the device in reverse polarity condition (reverse battery). The power transistor is built by an N-channel MOSFET with charge pump. It is specially designed to drive high current nominal loads up to 24 A, for application like heaters, glow plugs, fan and pump in the harsh automotive environment.

Features

  • Proportional load current sense
  • Short circuit /Overtemperature detection
  • Latched status after event
  • Reverse battery protection
  • Short circuit protection with latch
  • Overtemperature protection with latch
  • Enhanced short circuit operation
  • Smart clamping protection function

Benefits

  • Lowest Rdson HSS in DPAK
  • High inrush capability
  • best in class of current sense accuracy

Diagrams

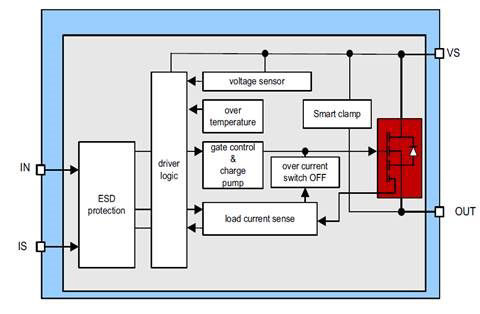

BTS50025-1TEA_Blogdiagram
BTS50025-1TEA_Blogdiagram
BTS50025-1TEA_Blogdiagram BTS50025-1TEA_Blogdiagram BTS50025-1TEA_Blogdiagram
×
