BTS4140N

The BTS4140N is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS4140N
BTS4140N
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit min
    0.2 A
  • Diagnostics
    n.a.
  • Family
    Classic PROFET™ 24V
  • IL (Short Circuit Current)
    0.9 A
  • Load Current
    0.2 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    0.2 A
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • Ptot max
    1.7 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    3000 mΩ
  • RDS (on) (@ Tj = 25°C)
    1000 mΩ
  • Recommended Operating Voltage
    4.9 V to 60 V
  • toff (Turn OFF time) max
    140 µs
  • ton (Turn ON time) max
    100 µs
Recommended
OPN
BTS4140NHUMA1
Product Status active and preferred
Infineon Package
PG-SOT223-4
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT223-4
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Current controlled input
  • Short circuit protection
  • Current limitation
  • Shutdown when undervoltage
  • Overvoltage protection (incl load dump)
  • Switching inductive loads
  • Thermal shutdown with restart
  • ESD- Protection
  • Loss GND and loss Vbb protection
  • Very low stand by current
  • Reverse battery protection
  • Improved electromagnetic compatibility

Benefits

  • Voltage clamped with inductive loads
  • Current limitation
  • Very low standby current
  • Thermal shutdown with restart
  • ESD-Protection

Diagrams

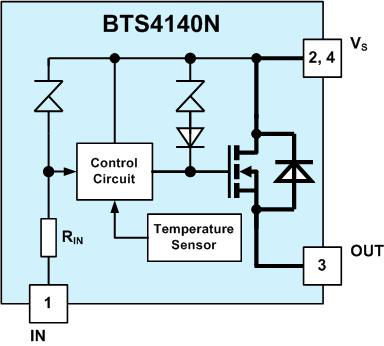

BTS4140N_Blockdiagram
BTS4140N_Blockdiagram
BTS4140N_Blockdiagram BTS4140N_Blockdiagram BTS4140N_Blockdiagram
×
