BTM9010EP

MOTIX™ BTM9010EP is a fully integrated H-bridge motor driver with adjustable slew rate at two levels for an improved EMC performance.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTM9010EP
BTM9010EP
ea.
Data Sheet

Product details

  • Classification
    ISO26262-ready
  • Diagnostics
    Open load detection, current sense
  • Digital interface
    PWM, SEL, INB, INA
  • ID(lim)(multiple)
    min 10.0 A
  • Normal Operating Voltage Range
    7 V - 18 V
  • Operating Voltage
    4.5 V to 40 V
  • Over current detection min
    10 A
  • Path resistance (at 25°C)
    175 mΩ
  • Currently planned availability until at least
    2038
  • Product validation
    AEC-Q100 (Grade 1)
  • Protect
    Overtemperature, undervoltage, overcurrent, short circuit, crosscurrent
  • Pulse current (at 85°C) (for tpulse ≤ 10 s)
    4.2 A
  • Pulse current (at 85°C) (for tpulse≤ 1 s)
    5.2 A
  • RDS (on)
    87.5 mΩ
  • RDSON_H(typ)
    87.5 mΩ
  • RDSON_L(typ)
    87.5 mΩ
  • Supply Voltage absolute max ratings
    40 V
  • Technology
    MOTIX™ Bridge
  • Temperature
    -40 °C to 150 °C
Recommended
OPN
BTM9010EPXUMA1
Product Status active and preferred

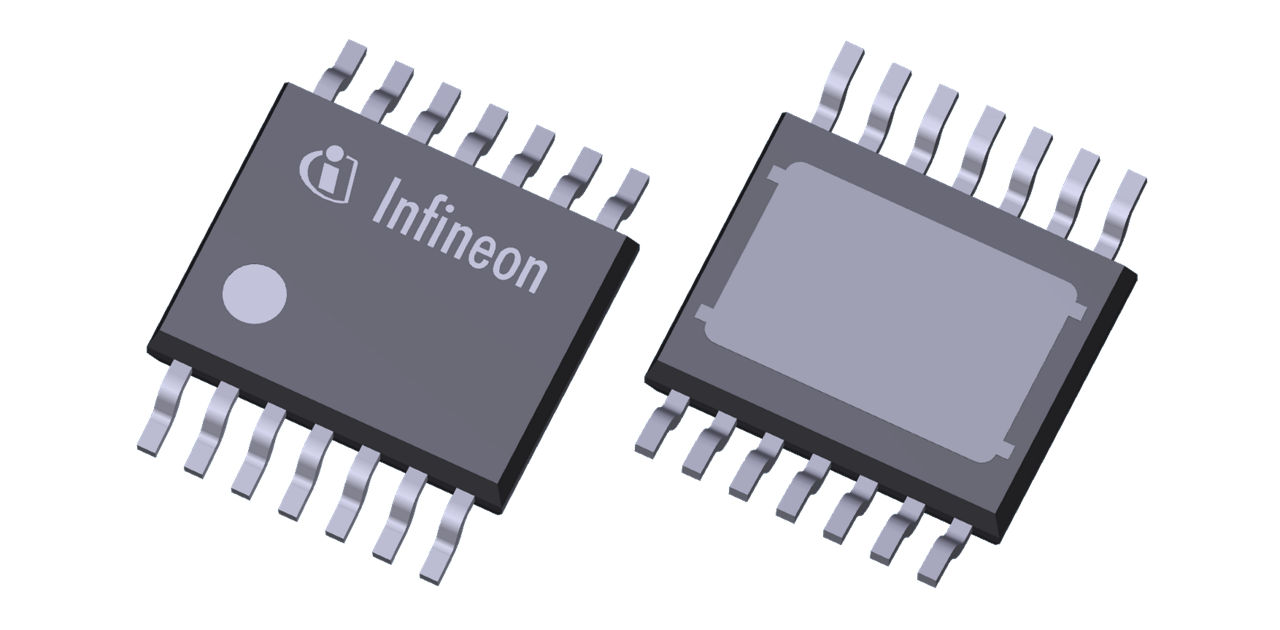

Infineon Package
PG-TSDSO-14
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The MOTIX™ BTM9010EP full-bridge IC provides a cost optimized solution for easy design in. The supply voltage of the device is at 7 V to 18 V. It suits automotive applications with limitation of minimum 10 A and covers PWM frequency of up to 20 kHz. BTM9010EP stands out due to its small (4,9 x 6,0mm) package with exposed pad leading to enhanced thermal conductivity. It features current sense for both, high side and low side.

Features

  • Supply voltage at 7 V to 18 V
  • Extended supply voltage 4.5 V - 40 V
  • Current limitation of minimum 10A
  • PWM operation up to 20kHz
  • AEC-Q100 qualified (Grade 1)
  • Adjustable slew rate at 2 levels
  • Internal charge pump
  • Half-bridge independent mode
  • Current sense and error flag pin
  • Current sense for high side and low side
  • OL detection w/o current sense method
  • Digital pins 3.3V/5V MCUs

Benefits

  • Small package with very low pin count
  • No need for external capacitors
  • Costs savings
  • Enhanced thermal conduction, exposed pad
  • More flexible half bridge control
  • Optimized EMC performance

Applications
