BSP752R

The BSP752R is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSP752R
BSP752R
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit min
    4 A
  • Diagnostics
    Digital
  • Family
    Classic PROFET™ 24V
  • IL (Short Circuit Current)
    6.5 A
  • Load Current
    1.7 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    1.7 A
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • Ptot max
    1.5 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    380 mΩ
  • RDS (on) (@ Tj = 25°C)
    150 mΩ
  • Recommended Operating Voltage
    6 V to 52 V
  • toff (Turn OFF time) max
    200 µs
  • ton (Turn ON time) max
    180 µs
Recommended
OPN
BSP752RXUMA2
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Thermal shutdown
  • Overvoltage protection (incl load dump)
  • Fast demagnetization of inductive loads
  • Rev battery protection w/ ext resistor
  • UV & OV shutdown w/ auto-restart & hyst
  • Open drain diag O/P overtemp & short CCT
  • Open load det'n OFF-state ext resistor
  • CMOS compatible input
  • Loss of ground & loss of Vbb protection

Benefits

  • Voltage clamped with inductive loads
  • Flags a fail event (Status pin)
  • Current limitation
  • Very low standby current
  • Thermal shutdown with restart
  • ESD-Protection

Diagrams

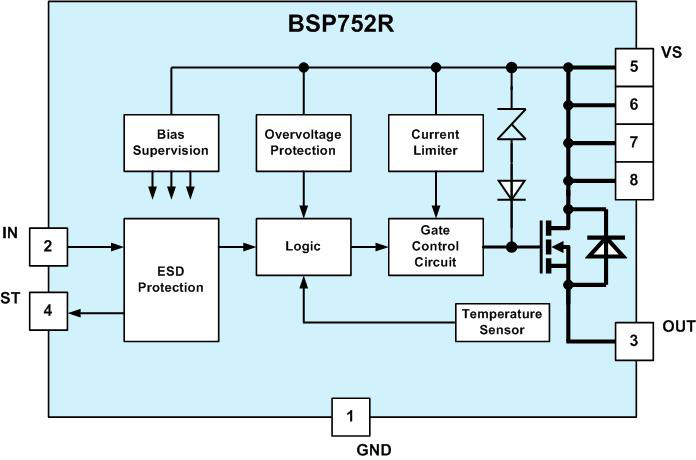

BSP752R_Blockdiagram
BSP752R_Blockdiagram
BSP752R_Blockdiagram BSP752R_Blockdiagram BSP752R_Blockdiagram
×
