BSP612P
BSP612P
Data Sheet

Product details

  • Ciss
    814 pF
  • Coss
    248 pF
  • ID max
    -3 A
  • IDpuls max
    -12 A
  • Mode
    Enhancement
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    SOT-223
  • Pin Count
    4 Pins
  • Polarity
    P
  • Ptot max
    1.8 W
  • QG
    -26.3 nC
  • RDS (on) max
    120 mΩ
  • RDS (on) (@4.5V) max
    170 mΩ
  • RDS (on) (@4.5V LL) max
    170 mΩ
  • VDS max
    -60 V
  • VGS(th)
    -2 V to -1 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

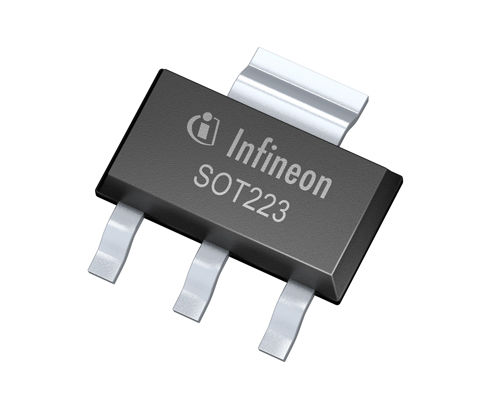

OptiMOS™ P-channel 60V small signal MOSFET in SOT-223 package.

Features

  • VDS= -60V
  • Very low on-resistance RDS(on)
  • 100% avalance tested
  • Logic level
  • AEC Q101 qualified

Benefits

  • Easy interface to MCU
  • Fast switching
  • Avalanche ruggedness

Applications
