BSD340N
BSD340N
Data Sheet

Product details

  • Ciss
    31 pF
  • Coss
    12 pF
  • ID max
    0.88 A
  • IDpuls max
    3.5 A
  • Mode
    Enhancement
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 150 °C

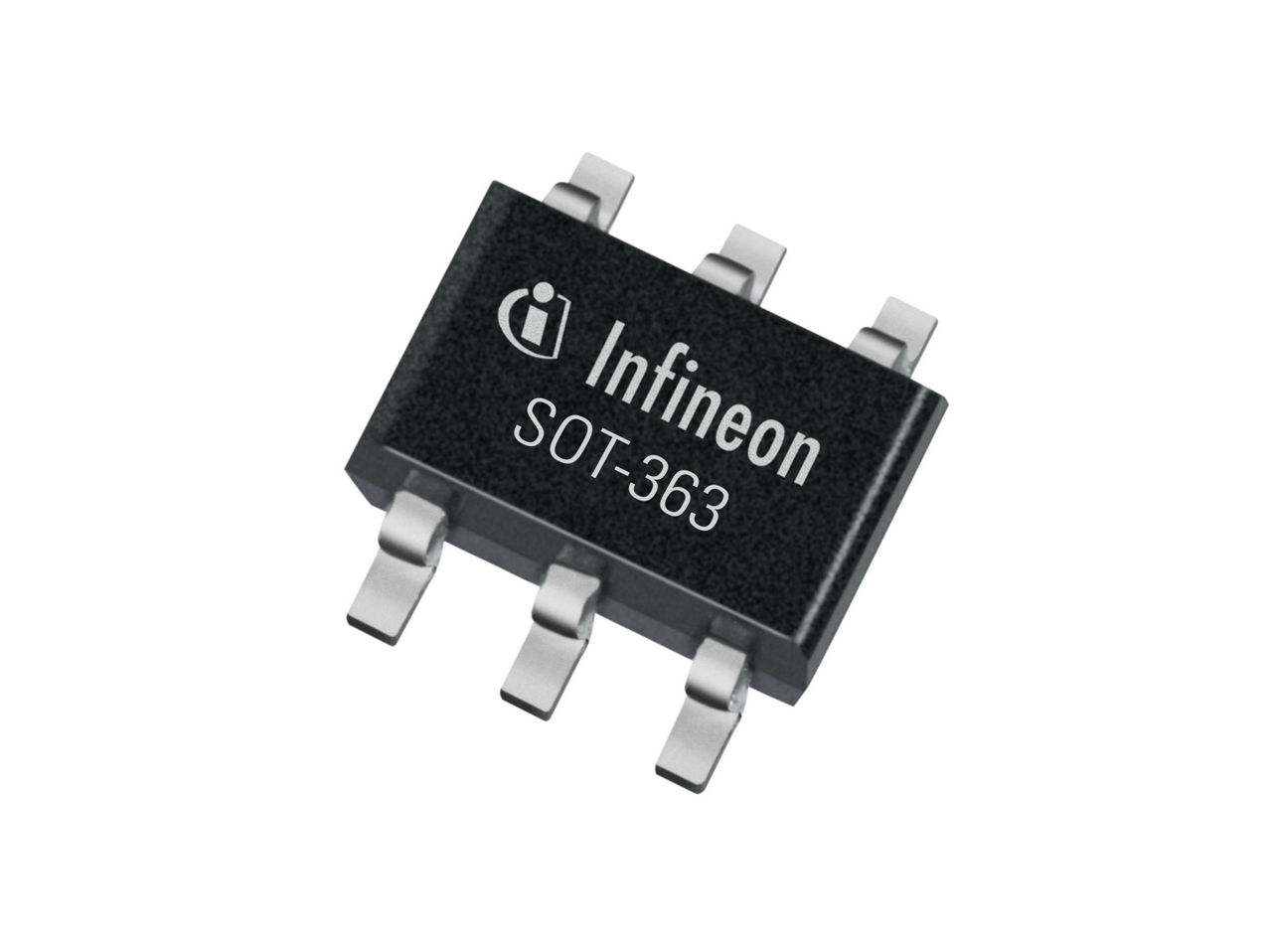

  • Package
    SOT-363
  • Pin Count
    6 Pins
  • Polarity
    N
  • Ptot max
    0.5 W
  • Qgd
    0.08 nC
  • QG
    0.46 nC
  • RDS (on) (@4.5V LL) max
    600 mΩ
  • RDS (on) (@4.5V) max
    600 mΩ
  • RDS (on) max
    400 mΩ
  • RthJA max
    250 K/W
  • VDS max
    30 V
  • VGS(th)
    1.2 V to 2 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
All Small Signal n-channel products are suitable for automotive applications (excluding 2N7002).

Features

  • Enhancement mode
  • Pb-free lead plating; RoHS compliant
  • Qualified according to AEC Q101

Applications
