Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BSB280N15NZ3 G

END OF LIFE
Data Sheet

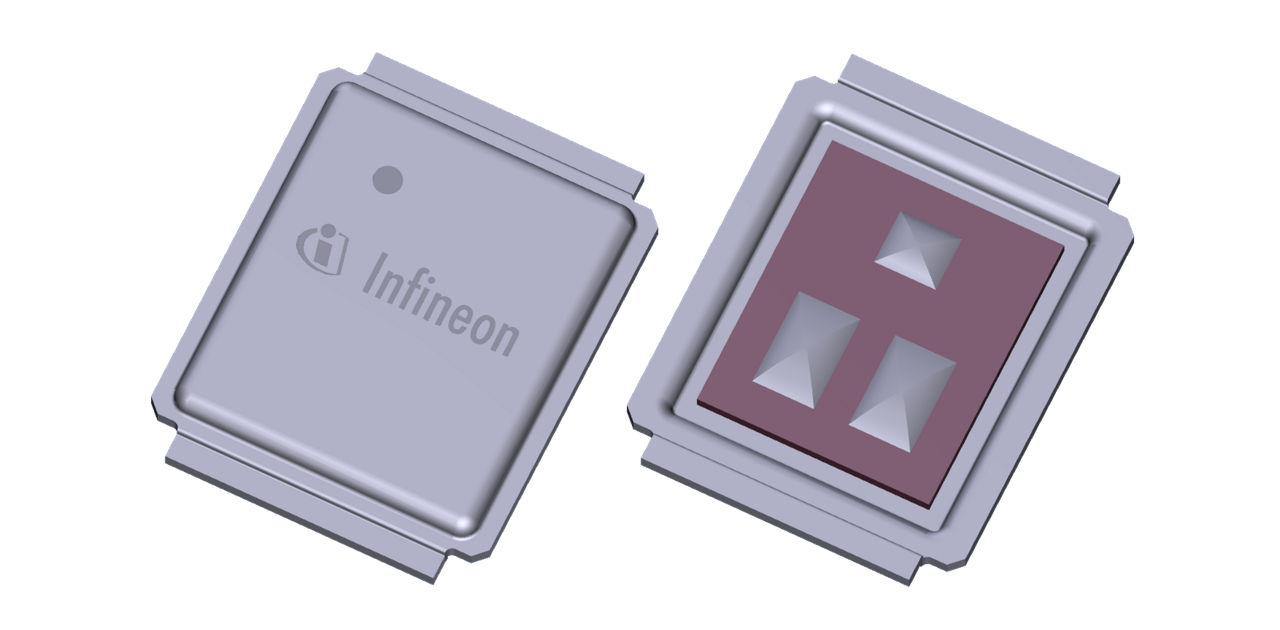

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSB280N15NZ3 G
BSB280N15NZ3 G
Data Sheet

Product details

  • Budgetary Price €/1k
    1.03
  • Ciss
    1200 pF
  • Coss
    180 pF
  • ID (@25°C) max
    30 A
  • IDpuls max
    120 A
  • Micro-stencil
    IRF66MZ-25
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    DirectFET(M)
  • Polarity
    N
  • Ptot max
    57 W
  • QG (typ @10V)
    15 nC
  • RDS (on) (@10V) max
    28 mΩ
  • Rth
    2.2 K/W
  • VDS max
    150 V
  • VGS(th)
    3 V
OPN
BSB280N15NZ3GXUMA1
Product Status discontinued
Infineon Package
MG-WDSON-2
Package Name DirectFET MZ
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
MG-WDSON-2
Package Name DirectFET MZ
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The 150V OptiMOS™ achieves a reduction in R DS(on) of 40% and of 45% in figure of merit (FOM) compared to the next best competitor. This drastic improvement opens new possibilities like moving from leaded packages to SMD packages or effectively replacing two old parts with one OptiMOS™ part.

Features

  • Excellent switching performance
  • World’s lowest R DS(on)
  • Very low Qg and Qgd
  • Excellent gate charge x RDS(on) product (FOM)
  • RoHS compliant-halogen free
  • MSL1 rated 2

Benefits

  • Environmentally friendly
  • Increased efficiency
  • Highest power density
  • Less paralleling required
  • Smallest board-space consumption
  • Easy-to-design products

Applications
