XENSIV™ 60 GHz radar sensor for reliable in-cabin monitoring systems
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGT60ATR24AIP
BGT60ATR24AIP
Data Sheet

Product details

  • Angle of Arrival
    Yes
  • Antenna
    Antennas in package
  • Family
    60 GHz radar sensors
  • Frequency range
    57.7 GHz to 62.4 GHz
  • Number of Rx Antennas
    4
  • Number of Tx Antennas
    2
  • Qualification
    Automotive
  • Supply Voltage
    1.8 V
  • Target Application
    Unattended/left-behind child detection, Seat occupancy detection to optimize seat belt reminder, Driver vital-sign and drowsiness monitoring, Gesture sensing for car infotainment, Intrusion and proximity alerts
  • Temperature Range
    -40 to +105°C
Recommended
OPN
BGT60ATR24AIPE6327XUMA1
Product Status active and preferred
Infineon Package
PG-VF2BGA-144
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VF2BGA-144
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The BGT60ATR24AIP is Infineon’s highly integrated automotive‑grade 60 GHz FMCW radar sensor with an antenna-in-package (AIP) designed for short‑range in‑vehicle sensing. It offers advanced sensing with high precision and ultra‑low power consumption, making it ideal for enabling contactless in‑cabin monitoring (ICMS) with very high accuracy, easy integration, and low system cost.

Features

  • 60 GHz radar for FMCW operation
  • 8.0 × 8.0 × 0.86 mm³ package size
  • Antennas-in-Package (AIP)
  • Ultra-low power consumption
  • AEC-Q100, Grade 2 qualified
  • High bandwidth of 4.7 GHz
  • Built-in crystal oscillator

Benefits

  • High resolution with sub-cm detection
  • Micro-motion detection with steep chirps
  • Reliable azimuth and elevation sensing
  • Low power with minimal MCU involvement
  • Autonomous FSM reduces power usage
  • Robust spatial sensing with 2 Tx / 4 Rx

Applications

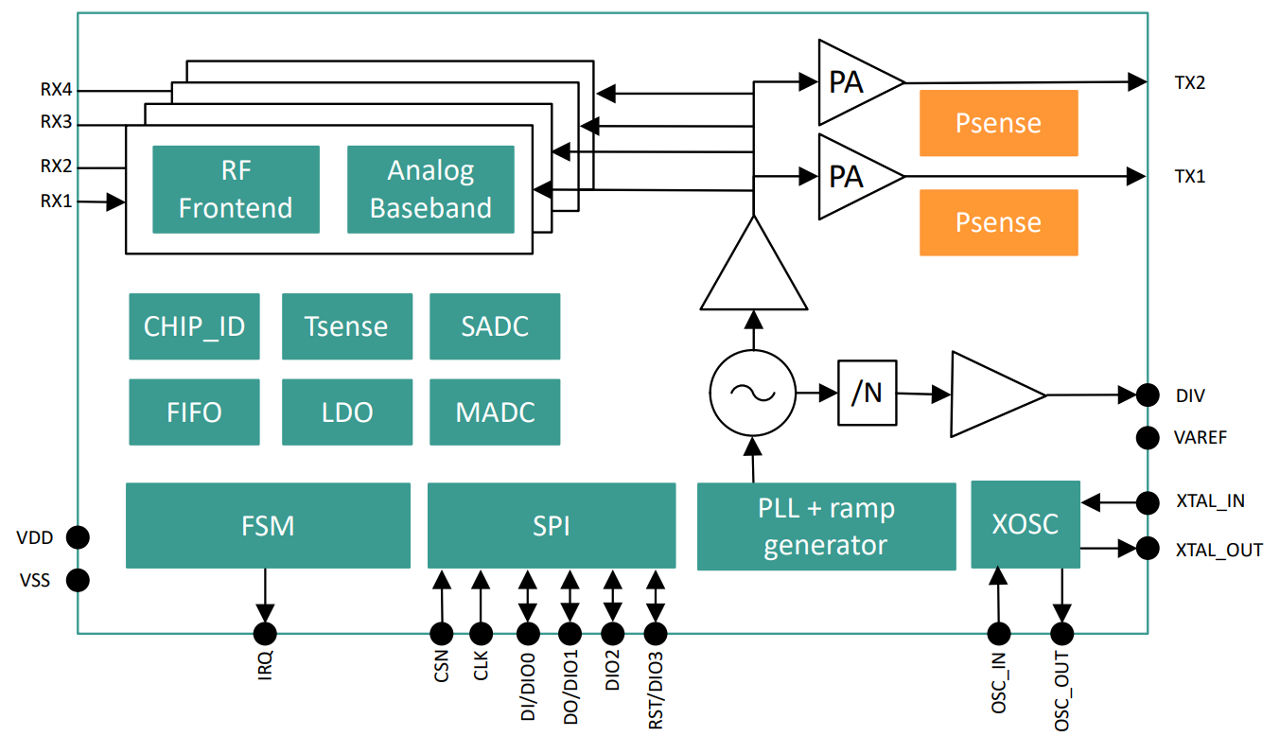

Diagrams
