Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
BGSX33M5U16
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BGSX33M5U16

END OF LIFE
3P3T MIPI 2.1 antenna cross switch
Datasheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSX33M5U16
BGSX33M5U16
Datasheet


Product details

  • Control Interface
    MIPI 2.1
  • Frequency Range range
    0.4 GHz to 7.125 GHz
  • Frequency Range
    0.4 – 7.125 GHz
  • Insertion Loss
    0.41 dB
  • Isolation
    45 dB
  • Pmax
    38 dBm
  • Size
    2.0 x 2.0 mm²
  • Supply Voltage range
    1.65 V to 1.95 V
  • Supply Voltage
    1.65 – 1.95 V
  • Switch Type
    3P3T

OPN
BGSX33M5U16E6327XTSA1
Product Status discontinued

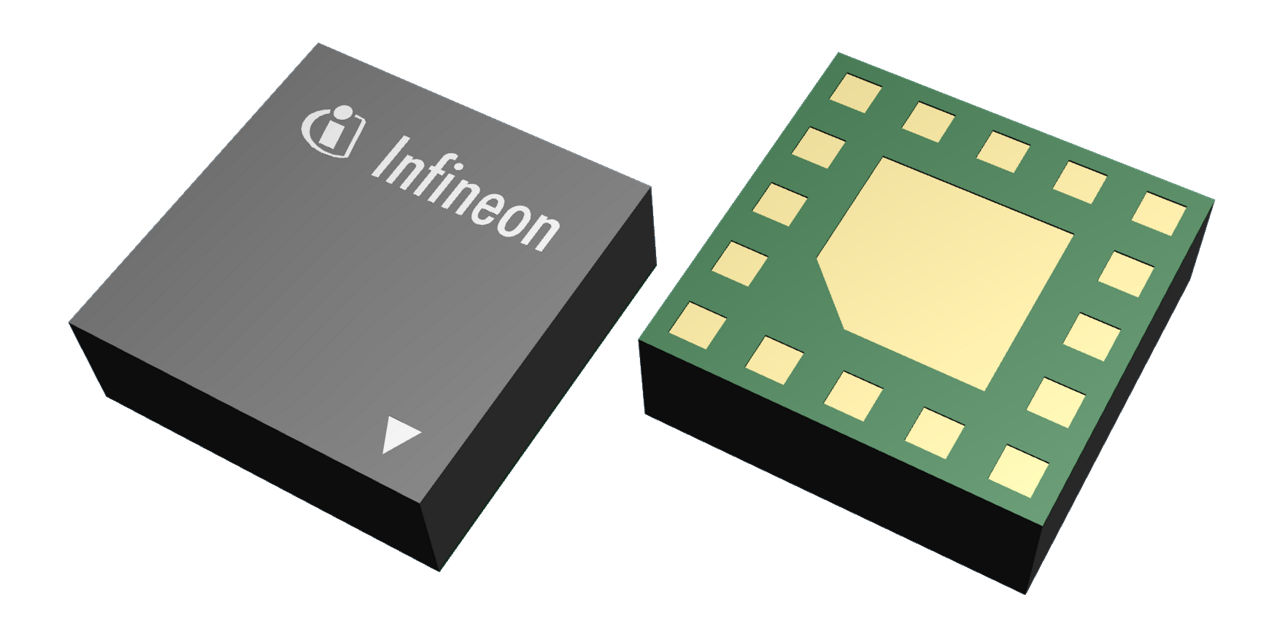

Infineon Package PG-ULGA-16
Package Name N/A
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
MY
Country of Diffusion (CoD)
JP

Product Status discontinued
Infineon Package PG-ULGA-16
Package Name -
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
MY
Country of Diffusion (CoD)
JP
The BGSX33M5U16 RF CMOS switch is specifically designed for LTE and 5G antenna applications. This 3P3T cross-switch offers low insertion loss and low harmonic generation.The switch is controlled via a MIPI RFFE control interface. The on-chip controller allows power-supply voltages from 1.65 to1.95 V. Unlike GaAs technology, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally. The device has a very small size of only 2.0 mm x 2.0 mm and a thickness of 0.6 mm.

Features

  • High linearity up to 38 dBm peak power
  • Fast switching time (max 2 µs) for 5G SRS applications
  • Low insertion loss and high port to port isolation up to 7.125 GHz
  • Enhanced isolation mode
  • Low power consumption allows supply VIO
  • MIPI RFFE 2.1 control interface
  • Software and hardware programmable USID
  • RoHS and WEEE compliant package
