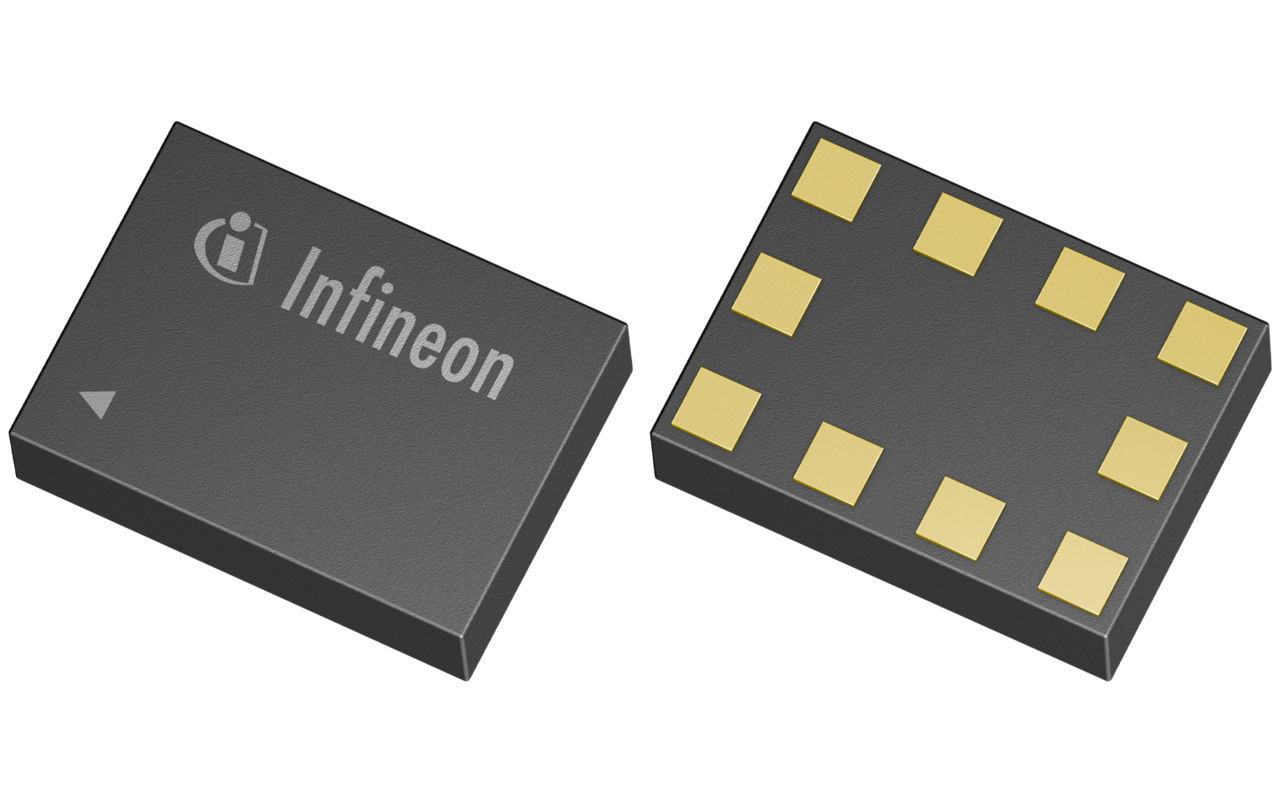

BGSC2341ML10

RF digitally tunable capacitor + SPDT switch
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSC2341ML10
BGSC2341ML10
Data Sheet

Product details

  • Capacitange range @0.9 GHz
    0.26 pF to 1.8 pF
  • COFF
    200 fF
  • Control Interface
    MIPI 2.1
  • Frequency Range
    0.4 - 3.8 GHz
  • Halogen-free
    yes
  • RON
    0.87 Ω
  • Size
    1.1 x 1.5 mm²
  • Switch Type
    SPDT + RF C-tuner
  • VRFmax
    40 V
Recommended
OPN
BGSC2341ML10E6327XTSA1
Product Status active and preferred
Infineon Package
TSLP-10-2
Package Name N/A
Packing Size 7500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
TSLP-10-2
Package Name -
Packing Size 7500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
BGSC2341ML10 is a versatile Integrated Circuit (IC) ideal for RF tuning applications such as tunable impedance matching, antenna tuning and tunable filtering. This IC integrates an 8-states tunable capacitor and an extremely low RON Single Pole Double Throw (SPDT) RF switch function; both controlled by on-chip MIPI 2.1 RFFE digital interface. Unlike some other tunable capacitor technologies, Infineon Bulk CMOS ensures very stable capacitance step values over the entire -40...+85° C temperature range. Last but not the least, BGSC2341ML10 exhibits very good linearity in high RF power conditions and up to RF voltage greater than 39 V which is a key attribute in application like antenna tuning. It does not require any additional High Voltage Supply Controller IC and can be powered by a single 1.8 V power supply at an extremely low current consumption level. With 1.1 mm x 1.5 mm package dimensions, it is a compact solution fitting well to any small form factor mobile phone-like applications.

Features

  • Designed for high-linearity applications
  • Ultra low RON resistance of 0.87 Ω at each SPDT throw in ON state
  • High operating RF Voltage handling 39 V
  • 0.26-2.00 pF tuning range at 1.8 GHz
  • Operating frequencies: 0.4 - 3.8 GHz
  • High ESD robustness
  • MIPI 2.1 RFFE compliant control interface
  • 2 default USID selectable via USID_SEL pin
  • Supply voltage range: 1.65 to 1.95 V
  • Small form factor 1.1 mm x 1.5 mm (MSL1, 260° C per JEDEC J-STD-020)
  • RoHS and WEEE compliant package
