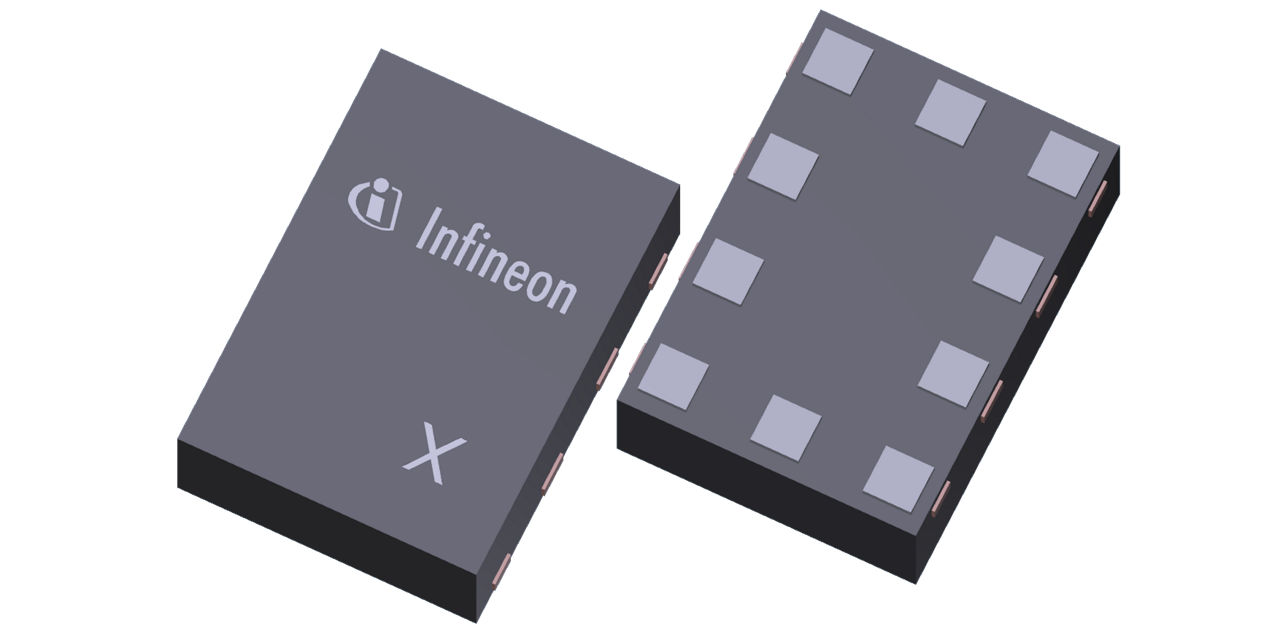

BGSA14M2N10

Ultra small antenna tuning SP4T
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSA14M2N10
BGSA14M2N10
Data Sheet

Product details

  • COFF
    160 fF
  • Control Interface
    MIPI 2.1
  • Frequency Range
    0.4 – 7.125 GHz
  • Halogen-free
    yes
  • RON
    0.85 Ω
  • Size
    0.95 x 1.3 mm²
  • Switch Type
    SP4T
  • VRFmax
    45 V
OPN
BGSA14M2N10E6329XTSA1
Product Status not for new design
Infineon Package
PG-TSNP-10
Package Name N/A
Packing Size 12000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
PG-TSNP-10
Package Name -
Packing Size 12000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The BGSA14M2N10 is a very small single-pole four-throws (SP4T) Antenna Tuning switch optimized for RF applications up to 7.125GHz. Its MIPI RFFE digital control interface allows easy implementation and best flexibility when operated in cellular mobile RF Front-End designs. The BGSA14M2N10 includes 4 low RON ports making it ideal for high Q tuning applications. Thanks to its high RF voltage ruggedness, it is suited for switching any reactive devices such as inductors and capacitors in RF matching circuits without significant losses.

Features

  • Ultra low RON resistance of 0.85 Ω in ON state
  • Low COFF capacitance of 160 fF in OFF state
  • High RF operating peak voltage handling of 45 V in OFF state
  • MIPI RFFE 2.1 control interface
  • Extremely low current consumption of 22 µA
  • 4 default USID addresses via external USID_SEL pin
  • Small form factor 0.95 mm x 1.3 mm (MSL1, 260 °C per JEDEC J-STD-020)
