BGS14WMA9

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS14WMA9
BGS14WMA9
ea.
Data Sheet

Product details

  • Control Interface
    MIPI
  • Frequency Range
    0.05 - 6.0 GHz
  • Insertion Loss (@1GHz)
    0.22 dB
  • Isolation (@1GHz)
    46 dB
  • Pmax max
    28 dBm
  • Supply Voltage
    1.65 - 1.95 V
  • Switch Type
    SP4T
Recommended
OPN
BGS14WMA9E6327XTSA1
Product Status active and preferred
Infineon Package
ATSLP-9-50
Package Name N/A
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
ATSLP-9-50
Package Name -
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

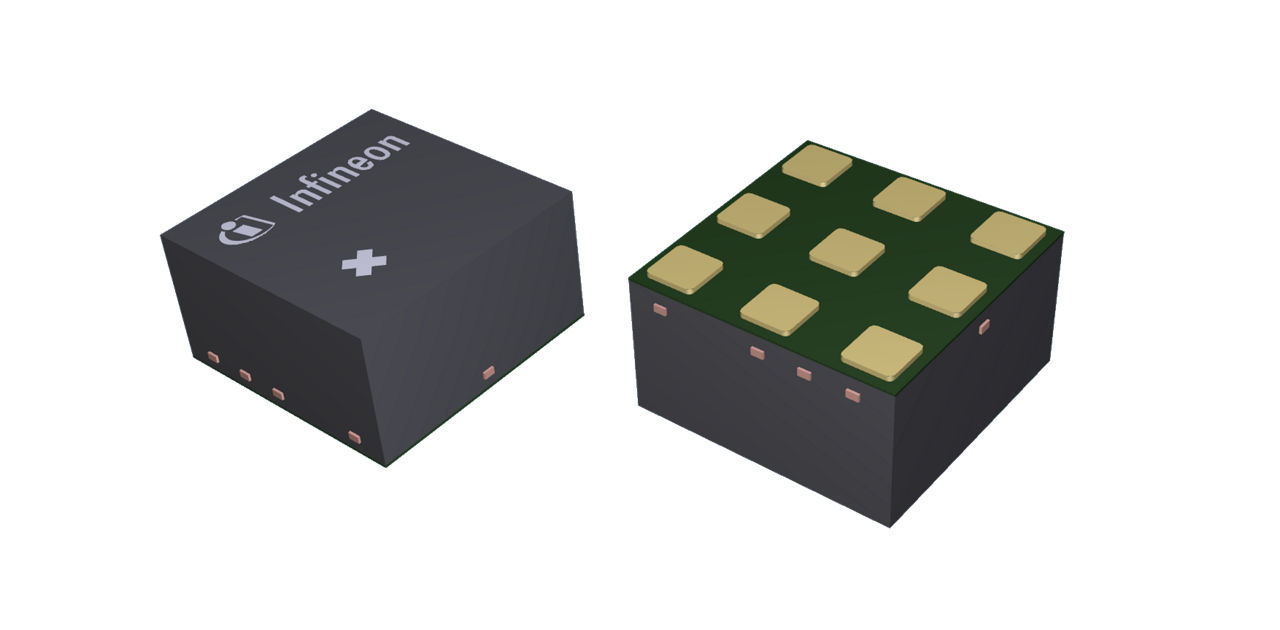

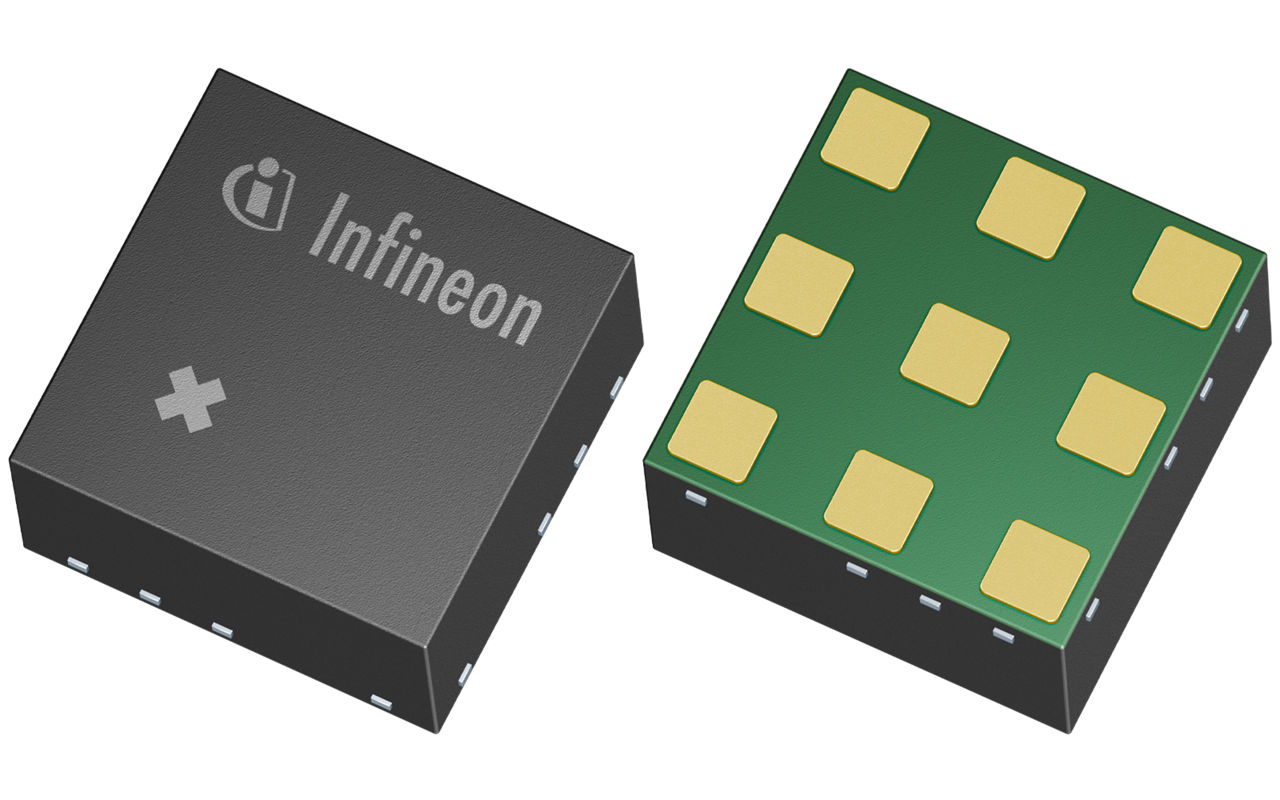

BGS14WMA9 is a Single Pole Four Throw (SP4T) diversity switch which is specifically designed for WLAN and Bluetooth applications in a very compact 9 pin package with very small size of only 1.1 x 1.1 mm2 and thickness of 0.55 mm. Any of the 4 ports can be used as termination of the diversity antenna handling up to 26 dBm. Unlike GaAs technology, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally.BGS14WMA9 RF switch is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherently higher ESD robustness.

Features

  • RF CMOS SP4T antenna diversity switch with power handling capability of up to 26 dBm
  • High switching speed
  • Suitable for WLAN and Bluetooth applications
  • 0.05 to 6.0 GHz coverage for FM Radio, LTE, LAA and 5G application
  • Low insertion loss and harmonics generation, high port to port isolation up to 6 GHz
  • Low current consumption
  • On chip control logic including ESD protection
  • Fully compatible with MIPI RFFE 2.1 standard operating in 1.65 to 1.95 V voltage range
  • Software programmable MIPI RFFE USID
  • USID swap feature
  • Small form factor of 1.1 x 1.1 mm2
  • No power supply blocking required
  • No decoupling capacitors required (Unless DC applied on RF lines)
  • 50 Ω termination enabling at isolation mode
  • High EMI robustness
  • RoHS and WEEE compliant package
