Active and preferred
RoHS Compliant
Lead-free

BGS12WN6

GPIO controlled SPDT RF switch designed for UWB, WiFi (WLAN) and Bluetooth applications with extended frequency coverage up to 9 GHz.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS12WN6
BGS12WN6
ea.
Data Sheet

Product details

  • Control Interface
    GPIO
  • Frequency Range
    0.05 - 9.0 GHz
  • Insertion Loss (@1GHz)
    0.16 dB
  • Isolation (@1GHz)
    46 dB
  • Pmax max
    30 dBm
  • Supply Voltage
    1.65 - 3.6 V
  • Switch Type
    SPDT
Recommended
OPN
BGS12WN6E6327XTSA1
Product Status active and preferred

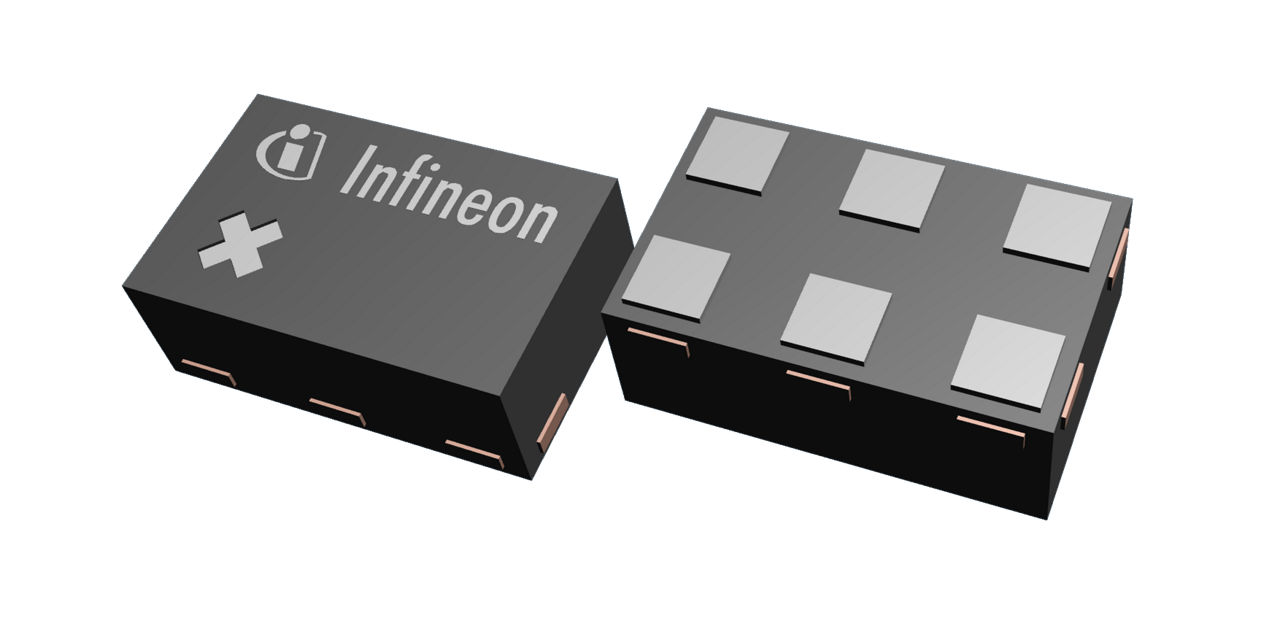

Infineon Package
TSNP-6-10
Package Name N/A
Packing Size 12000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
TSNP-6-10
Package Name -
Packing Size 12000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BGS12WN6 is a broadband SPDT RF switch suitable for various wireless systems, including WiFi \BT, UWB, and cellular. Its high linearity performance and low insertion loss make it an ideal choice for switching transmit signals, e.g., as Tx \Rx switch or as antenna diversity switch. The integrated on-chip CMOS logic allows direct connection to a digital control pin, eliminating the need for extra interface circuitry, thereby simplifying system design, and reducing component count. The isolated port is a reflective short. The device’s flexible voltage supply and control enable easy adaptation to diverse applications and use cases. The BGS12WN6 is fabricated using Infineon’s proprietary RF CMOS technology. Housed in a miniature package, this device is particularly well-suited for applications where PCB space is critical, allowing for optimal utilization of available board real estate.

Features

  • Frequency range from 0.05 to 9 GHz
  • Small size 0.7 × 1.1 mm2 and ultra-low profile of 0.375 mm height max
  • Fast switching speed
  • Low insertion loss and high port to port isolation up to 9 GHz
  • RF input power up to 30 dBm power
  • Low current consumption
  • No DC blocking capacitors required if no DC applied on RF lines
  • RoHS and WEEE compliant package
