Active and preferred
RoHS Compliant
Lead-free

BGA9H1MN9

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGA9H1MN9
BGA9H1MN9
ea.
Data Sheet

Product details

  • Frequency
    1400 - 2700 MHz
  • Gain
    20.2 dB
  • ICC
    5.8 mA
  • IIP3
    -9 dBm
  • IP1dB
    -13 dBm
  • NF
    0.6 dB
  • P-1dB
    -13 dBm
  • Size
    1.1 x 1.1 mm²
  • VCC operating
    1.1 - 2.0 V
Recommended
OPN
BGA9H1MN9E6329XTSA1
Product Status active and preferred
Infineon Package
PG-TSNP-9
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSNP-9
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

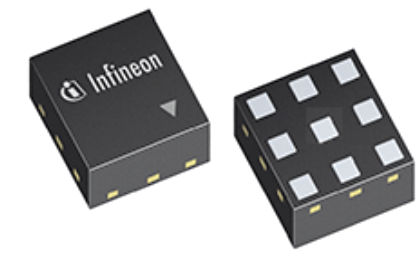

The BGA9H1MN9 is a low noise amplifier for LTE and 5G which covers a wide frequency range from 1.4 GHz to 2.7 GHz. The LNA provides up to 20.2 dB gain and 0.6 dB noise figure at a current consumption of 5.8 mA in the application configuration described in Chapter 7. With the Gain Step feature the gain and linearity can be adjusted to increase the system dynamic range and to accommodate to changing interference scenarios. The BGA9H1MN9 supports ultra-low bypass current of 2 µA and 1.2 V operating voltage to reduce power consumption. It operates from 1.1 V to 2.0 V supply voltage over temperature. The compact9 pin TSNP-9 package with the dimension of 1.1 x 1.1 mm helps to save space on the PCB.

Features

  • Power gain: 20.2 dB
  • Low noise figure: 0.6 dB
  • Low current consumption: 5.8 mA
  • Frequency range from 1.4 to 2.7 GHz
  • Supply voltage: 1.1 to 2.0 V
  • Integrated MIPI RFFE interface operating in 1.65 to 1.95 V voltage range
  • Software programmable MIPI RFFE USID
  • USID select pin
  • Small form factor 1.1 mm x 1.1 mm
  • High EMI robustness
  • RoHS and WEEE compliant package
