Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
BFS483
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BFS483

END OF LIFE

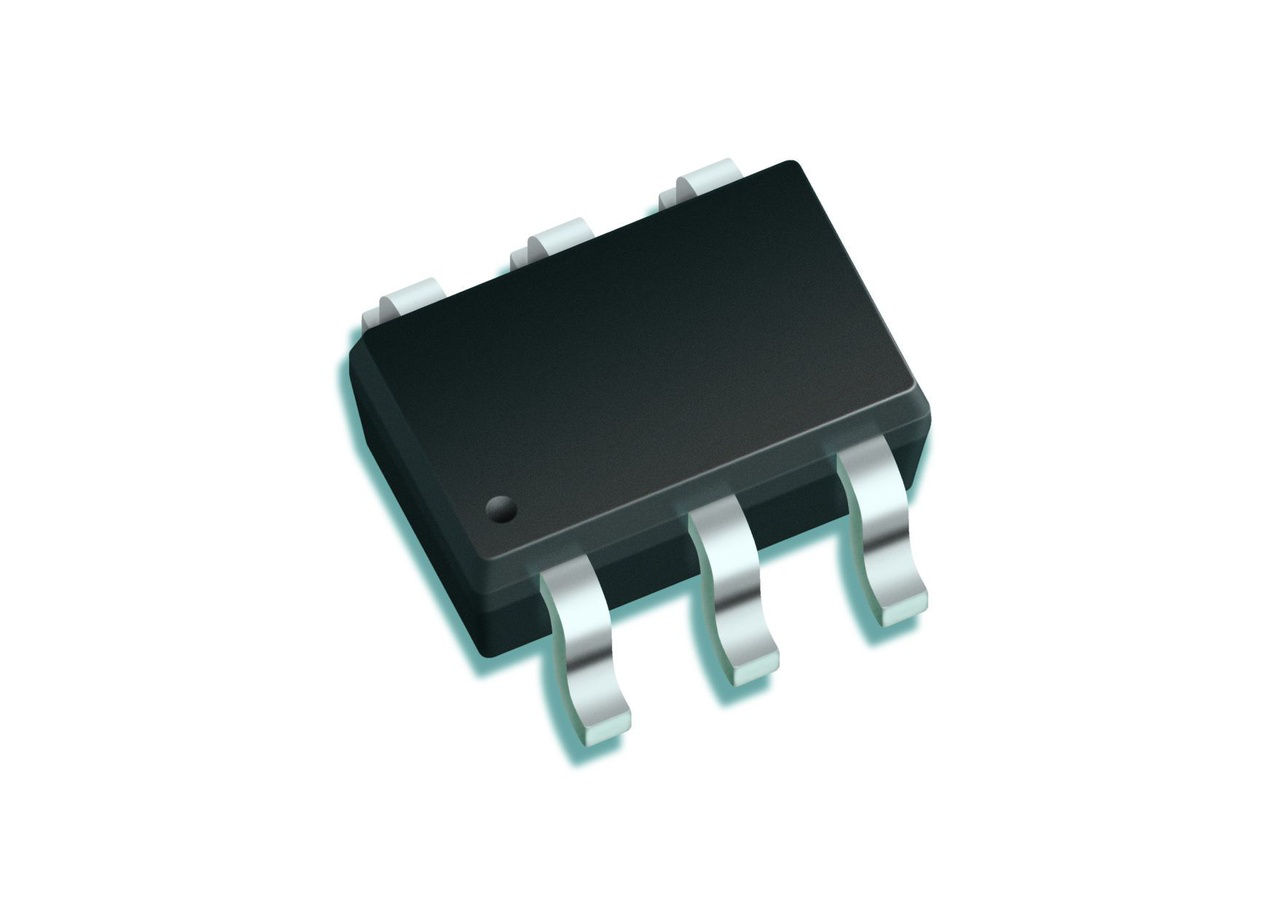

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BFS483
BFS483

Product details

  • fT
    8 GHz
  • Gmax
    19 dB @900 MHz
  • IC max
    65 mA
  • NFmin
    0.90 dB @900 MHz
  • OIP3
    26.5 dBm
  • OP1dB
    9 dBm
  • Package
    SOT363
  • Ptot
    450 mW
  • VCEO max
    12 V
OPN
BFS483H6327XTSA1
Product Status discontinued
Infineon Package
SOT363
Package Name SOT-363
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
SOT363
Package Name SOT-363
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
NPN Silicon RF Transistor for low noise, high-gain broadband amplifiers at collector currents from 2 mA to 30 mA

Features

  • For low noise, high-gain broadband amplifiers at collector currents from 2 mA to 30 mA
  • fT = 8 GHz, F = 0.9 dB at 900 MHz
  • Two (galvanic) internal isolated Transistor in one package
  • For orientation in reel see package information in datasheet
  • Pb-free (RoHS compliant) package

Applications
