AUIRFP4110

100 V, N-Ch, 4.5 mΩ max, Automotive MOSFET, TO-247, Gen 10.7
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRFP4110
AUIRFP4110
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    3.26, 3.26
  • Country of Assembly (Last BE site, current, subject to change)
    China, Mexico
  • Country of Diffusion (Last FE site, current, subject to change)
    Taiwan
  • ID (@25°C) max
    120 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C

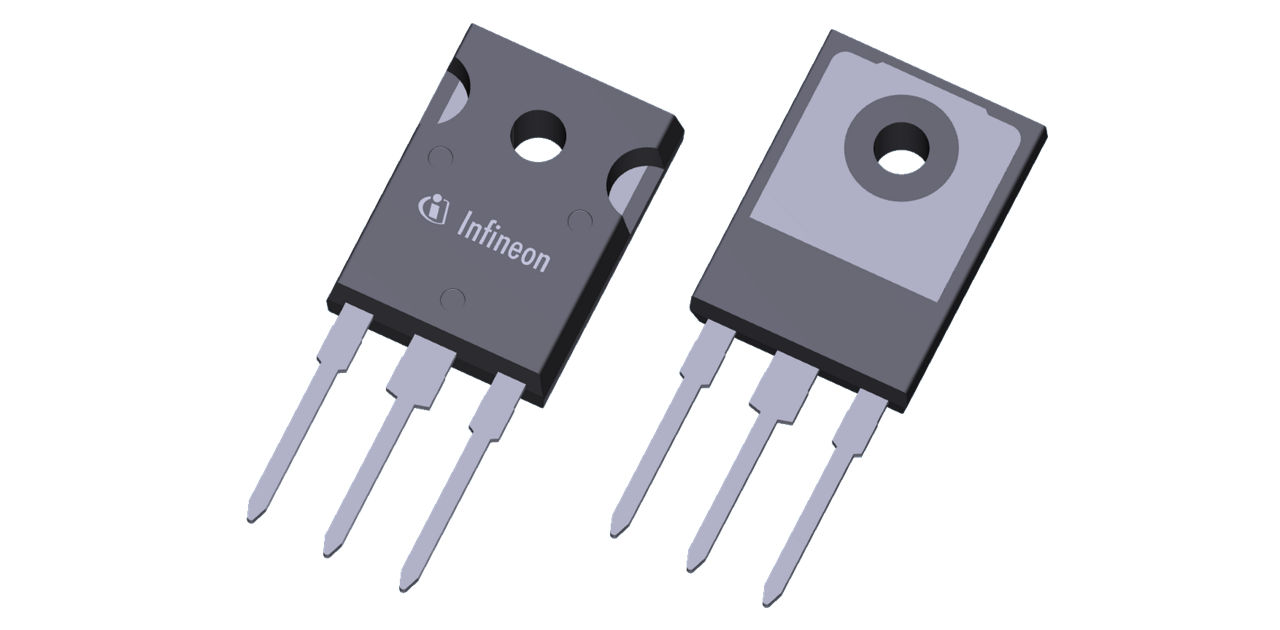

  • Package
    TO247
  • Polarity
    N
  • Ptot max
    370 W
  • Qgd
    43 nC
  • QG (typ @10V) max
    210 nC
  • QG (typ @10V)
    150 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    4.5 mΩ
  • RthJC max
    0.4 K/W
  • Technology
    Gen 10.7
  • Tj max
    175 °C
  • VDS max
    100 V
  • VGS(th) min
    2 V
  • VGS(th) max
    4 V
  • VGS max
    20 V
Recommended
OPN
AUIRFP4110 AUIRFP4110XKMA1
Product Status active active
Infineon Package
TO247
PG-TO247-3
Package Name PG-TO247-3 TO247
Packing Size 400 400
Packing Type TUBE TUBE
Moisture Level N/A NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
TO247
Package Name PG-TO247-3
Packing Size 400
Packing Type TUBE
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 400
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • Advanced Process Technology
  • Ultra Low On-Resistance
  • Enhanced dV/dT and dI/dT capability
  • 175°C Operating Temperature
  • Fast Switching
  • Repetitive Avalanche Allowed up to Tjmax
  • Lead-Free, RoHS Compliant
  • Automotive Qualified
  • PPAP Capable Device
