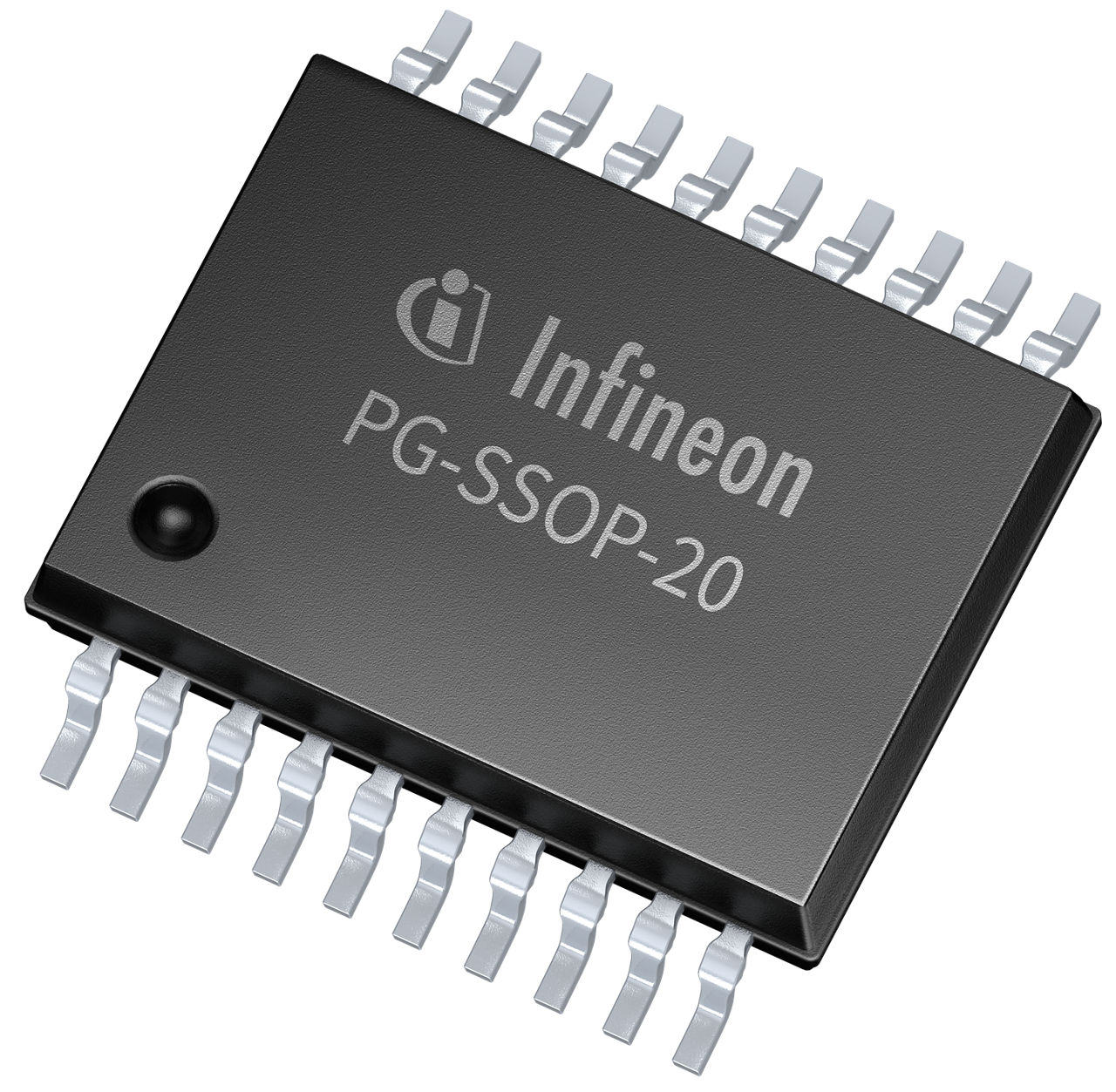

AS8512

AS8512

2-channel data acquisition IC for energy storage systems
Datasheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AS8512
AS8512
Datasheet

Product details

  • Current consumption
    3 mA
  • Function
    current sensing
  • Operating ambient temperature range
    -40 °C to 105 °C
  • Package dimensions
    7.2 x 7.8 x 2 mm
  • Resolution
    16 bit
  • Standby current
    40 µA
  • Supply Voltage
    3.3 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The AS8512 IVT-sensor is a high-precision Battery Pack Monitoring front-end IC featuring 2 synchronized, offset-free and low noise measurement channels for current and voltage in battery management systems. It is tailored to accurately measure a wide range of current (from mA up to kA) in combination with shunt resistor. The second measurement channel is configurable to either capture the battery voltage or an analog temperature sensor signal.

Features

  • Low supply voltage
  • Redundant measurement possibility
  • Flexible configuration
  • Unique measurement principle

Benefits

  • 3.3V supply voltage
  • Two high resolution 16-bit Sigma-Delta A/D converters
  • Programmable sampling to enable data throughput from less than 1Hz to 8kHz
  • Zero offset for both channels

Applications
