AIMBG75R033M2H

NEW

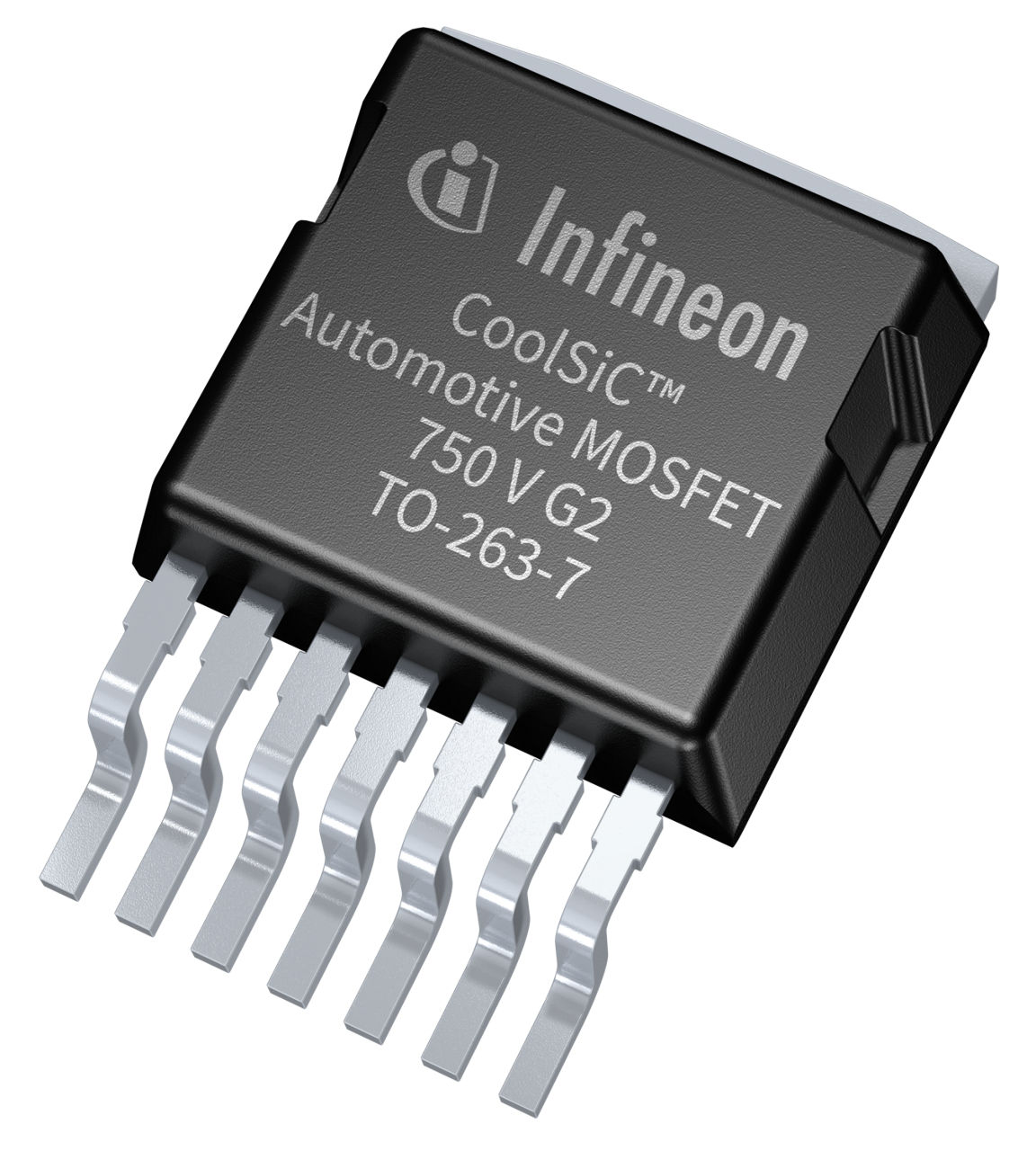

CoolSiC™ Automotive MOSFET 750 V G2 in D2PAK-7 package, 33 mΩ
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIMBG75R033M2H
AIMBG75R033M2H
Data Sheet

Product details

  • ID (@25°C) max
    50 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    D2PAK 7-pin
  • Polarity
    N
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    33 mΩ
  • RthJC max
    0.79 K/W
  • Technology
    CoolSiC™ G2
  • VDS max
    750 V
Recommended
OPN
AIMBG75R033M2HXTMA1
Product Status active and preferred
Infineon Package
PG-TO263-7
Package Name D2PAK 7-pin
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO263-7
Package Name D2PAK 7-pin
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The CoolSiC™ MOSFET 750 V leverages more than 20 years of SiC experience in Infineon.  It offers an edge in performance, reliability and robustness, with gate driving flexibility, enabling the simplified and cost effective system design for top efficiency and power density. The innovative top-side-cooling package further enhance the CoolSiC™ 750 V strengths offering more density, optimized power loop design and less system and assembly cost.

Features

  • Highly robust 750 V technology
  • Best-in-class RDS(on) x Qfr
  • Excellent Ron x Qoss and Ron x QG
  • Low Crss/Ciss together and high Vgsth
  • 100% avalanche tested
  • Infineon die attach technology
  • Cutting-edge top-side-cooled package

Benefits

  • Superior efficiency in hard switching
  • Enables higher switching frequency
  • Higher reliability
  • Withstand bus voltages beyond 500 V
  • Robustness against parasitic turn
  • Unipolar driving
  • Best-in-class thermal dissipation
