AIMBF170R450M1

NEW

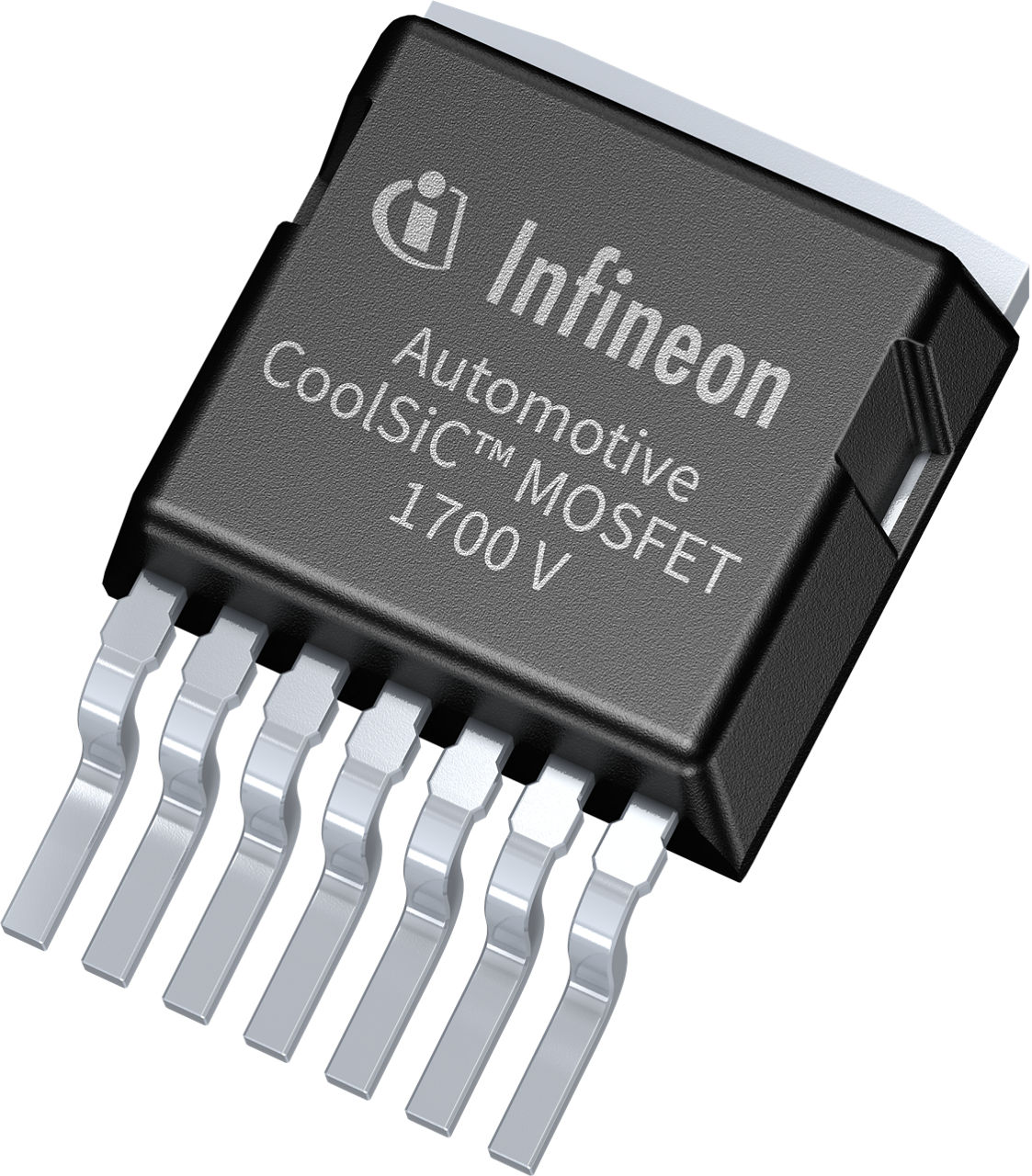

Automotive CoolSiC™ MOSFET 1700 V in D2PAK
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIMBF170R450M1
AIMBF170R450M1
Data Sheet

Product details

  • ID (@25°C) max
    11.2 A
  • Operating Temperature range
    -55 °C to 175 °C
  • Polarity
    N
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    350 mΩ
  • Technology
    CoolSiC™ G1
  • VDS max
    1700 V
Recommended
OPN
AIMBF170R450M1XTMA1
Product Status active and preferred
Infineon Package
PG-TO263-7
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO263-7
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon introduce the new Automotive CoolSiC™ MOSFET 1700 V, enabling new flyback topologies for aux power supplies and DCDC converters . Our SiC Trench MOSFET technology offers a 0V/20V gate-source voltage driving, compatible with most of the flyback controllers for automotive applications.

Features

  • Optimized for flyback topologies
  • Sense (Kelvin) source pin
  • Vgs 0V/20V for unipolar driving
  • SMD package
  • Diffusion soldering die attach

Benefits

  • Reduced switching losses
  • Efficiency improvement
  • Cooling effort reduction
  • 0V turn-off for optimized BOM

Applications
