AIKYX200N75CP2

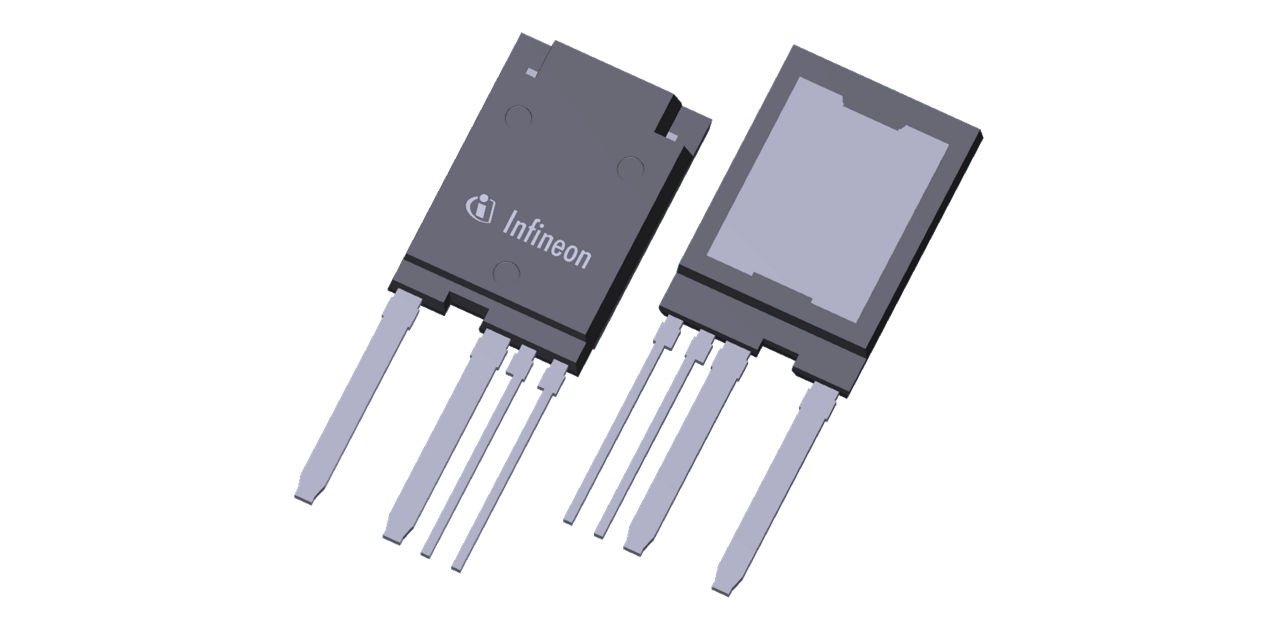

750 V, 200A EDT2 IGBT with anti-parallel diode in reflow-solderable package TO247PLUS 4-Pin
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIKYX200N75CP2
AIKYX200N75CP2
Data Sheet

Product details

  • Co-pack diode technology
    EMCON3
  • Eon
    7.6 mJ
  • IC (@ 25°) max
    250 A
  • IC (@ 100°) max
    200 A
  • ICpuls max
    600 A
  • IF max
    200 A
  • IFpuls max
    600 A
  • Irrm
    68.4 A
  • Launch year
    2024
  • Package
    TO-247PLUS-4
  • Currently planned availability until at least
    2033
  • Ptot max
    938 W
  • QGate
    1270 nC
  • Qrr
    6.1 nC
  • Reflow Solderable
    Yes
  • Switching Frequency
    7kHz - 15kHz
  • td(off)
    268 ns
  • td(on)
    79 ns
  • Technology
    EDT2
  • tf
    58 ns
  • tr
    44 ns
  • Type
    IGBT + Diode
  • VCE(sat)
    1.37 V
  • VCE max
    750 V
  • VF
    1.8 V
Recommended
OPN
AIKYX200N75CP2ALSA1
Product Status active and preferred
Infineon Package
PG-TO247-4
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level 2
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO247-4
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The AIKYX200N75CP2 discrete IGBT in a 4-Pin TO247PLUS package with 750V EDT2 technology is ideal for automotive applications. It supports up to 470V battery voltages, safe fast switching and 30% reduced turn on energy loss compared to 3-pin devices. Its qualified reflow-solderable package enables innovative assembly solutions for up to 40% better thermal conductivity and highest power output on a system level.

Features

  • Best-in-class 750 V TO247PLUS
  • Suitable for 470 V VDC systems
  • Very low VCEsat
  • Short circuit robust tsc = 3 µs
  • Qualified Reflow device at 260°C
  • Self limiting short-circuit current
  • Very tight parameter distribution
  • Low gate charge QG
  • Wide Power pins 2 mm
  • Resistive weldable pins
  • High creepage distance
  • Product Validation acc. to AEC-Q101

Benefits

  • Benchmark quality & switching behavior
  • Ideal for automotive requirements
  • Excellent parallel operation
  • High reliability and operating lifetime
  • Low switching losses and cooling effort
  • Various power classes - same package
  • Power scalability and cost optimization
  • High power output by reflow-soldering
  • Low costs per Ampere on system level
  • Low EMI signature
  • Simple gate drive design
  • Higher efficiency with Kelvin emitter

Applications

Documents

Documents

Design resources

Partner solutions

Developer community
