2EDL900G3

EiceDRIVER™ 120 V Level shifter gate driver IC that is designed to drive dual high-side, dual low-side or half-bridge configurations of Si MOSFETs
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDL900G3
2EDL900G3
Data Sheet

Product details

  • Channels
    2
  • Input Vcc range
    3.8 V to 15 V
  • Output Current max
    4 A
  • Output Voltage range
    0 V to 16 V
  • Qualification
    Industrial
OPN
2EDL900G3XTMA1
Product Status coming soon
Infineon Package PG-TSNP-16
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package PG-TSNP-16
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

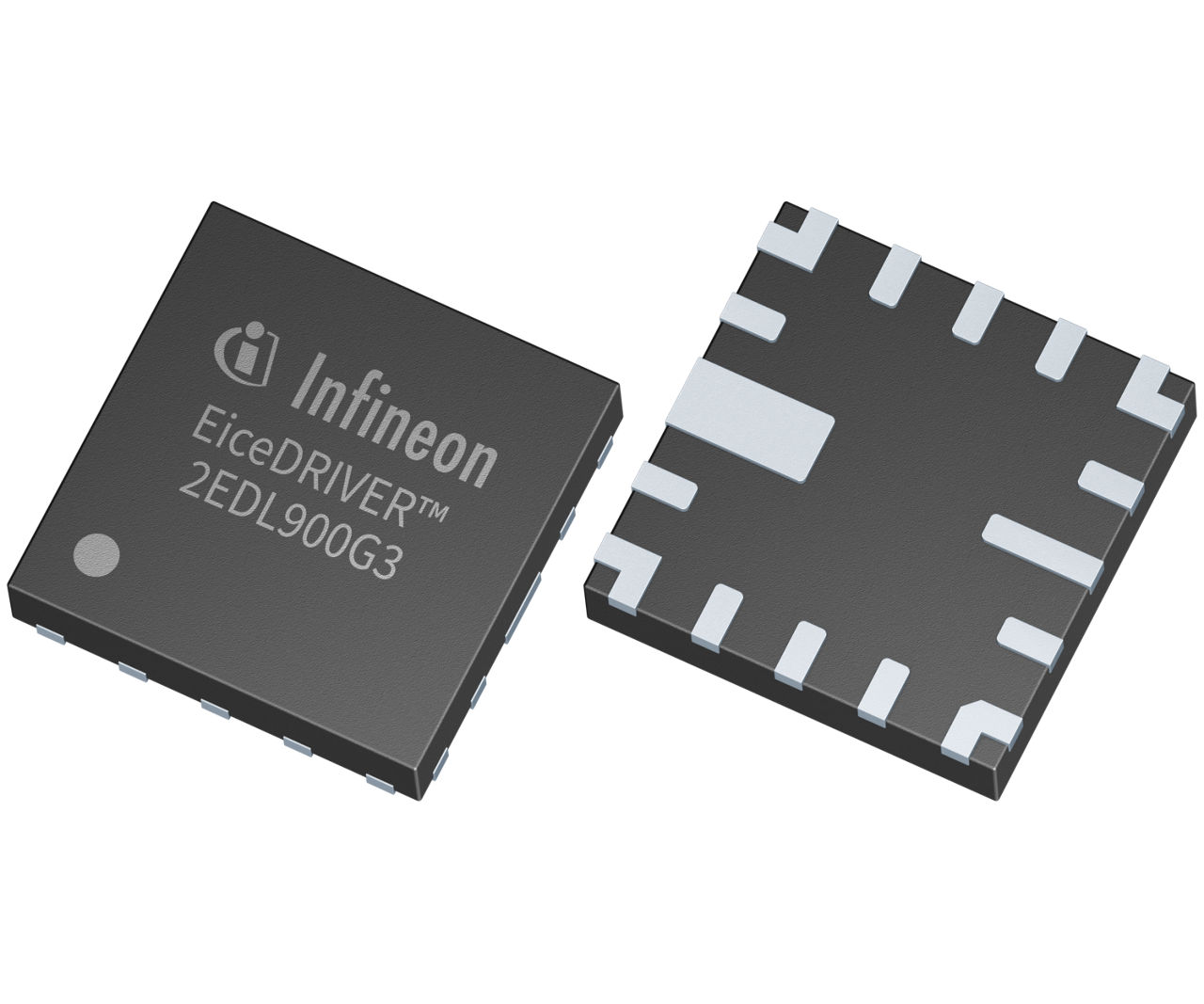

The EiceDRIVER™ 2EDL900G3 is a dual channel level shifter gate driver IC with dual floating outputs to drive silicon MOSFETS. This strong 4 A/6 A source/sink current dual-channel gate driver has an integrated current sense amplifier. It also has a programmable deadtime and mode of operations such as tri-state single PWM mode, HSCC HS mode, HSCC LS mode, Hi/Li inverted mode, and Hi/Li mode. It is available in 16 pins 3x3 mm package.

Features

  • Dual-channel floating output driver
  • Strong 4 A source and 6 A sink current
  • 4 V to 16 V driving capability
  • Configurable deadtime or turn-on delay
  • Integrated current sense amplifier
  • Configurable mode of operations

Benefits

  • Support wide range of power topologies
  • Compact and thermally capable solution
  • Suitable for high power applications
  • Flexible for many customer requirements
