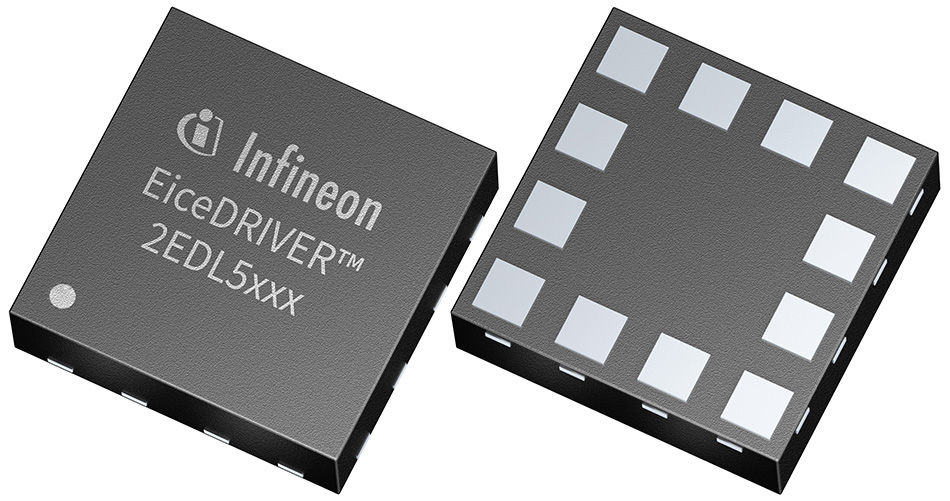

2EDL5023U2D

120V HB 2EDL50X3U2D EiceDRIVER™
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDL5023U2D
2EDL5023U2D
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    High-side and low-side
  • Input Vcc
    4.5 V to 5.5 V
  • Isolation Type
    Functional levelshift
  • Output Current (Source)
    3 A
  • Output Current (Sink)
    5 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    20 ns
  • Turn On Propagation Delay
    20 ns
  • VBS UVLO (On)
    3.8 V
  • VBS UVLO (Off)
    3.6 V
  • Voltage Class
    120 V
Recommended
OPN
2EDL5023U2DXTMA1
Product Status active
Infineon Package
PG-TSNP-12
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSNP-12
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Drive both high-side and low-side logic level MOSFETs in a half-bridge configuration. 120 V bootstrap voltage with integrated bootstrap diode and an active bootstrap clamp mechanism to avoid bootstrap capacitor overcharge during deadtime. with TTL logic compatible inputs and split outputs to provide flexibility in adjusting the turn-on and turn-off strength independently and an active miller clamp is implemented to avoid induced turn-on.

Features

  • Integrated 120 V bootstrap switch
  • Low propagation delay and delay matching
  • Strong 7 A active miller clamp
  • Strong current capability
  • Small 2x2 mm TSNP package

Benefits

  • No need for external bootstrap diode
  • Fast switshing transition
  • Higher efficiency
  • Higher power density
  • Induced turn-on immunity

Applications
