Active and preferred
RoHS Compliant
Lead-free

2EDF7268G

EiceDRIVER™ Compact 1500 V rms dual-channel isolated gate driver with 5 A / 9 A output current in 4x4 14pin VSON with Thermal Pads
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDF7268G
2EDF7268G
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    High-side
  • Isolation Type
    Galvanic Isolation - Reinforced
  • Output Current range
    5 A to 9 A
  • Output Voltage range
    4.5 V to 20 V
  • Package
    PG-VSON-14
  • Qualification
    Industrial
  • RDSON_H(typ) range
    0.93 Ω to 1.6 Ω
  • RDSON_L (max)
    0.62 Ω
  • RDSON_L(typ)
    0.36 Ω
  • RthJA
    46 K/W
  • Turn Off Propagation Delay
    36 ns
  • Turn On Propagation Delay
    38 ns
  • VBS UVLO range
    3.9 V to 4.2 V
  • Voltage Class
    1500 V
Recommended
OPN
2EDF7268GXTMA1
Product Status active and preferred
Infineon Package
PG-VSON-13
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VSON-13
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

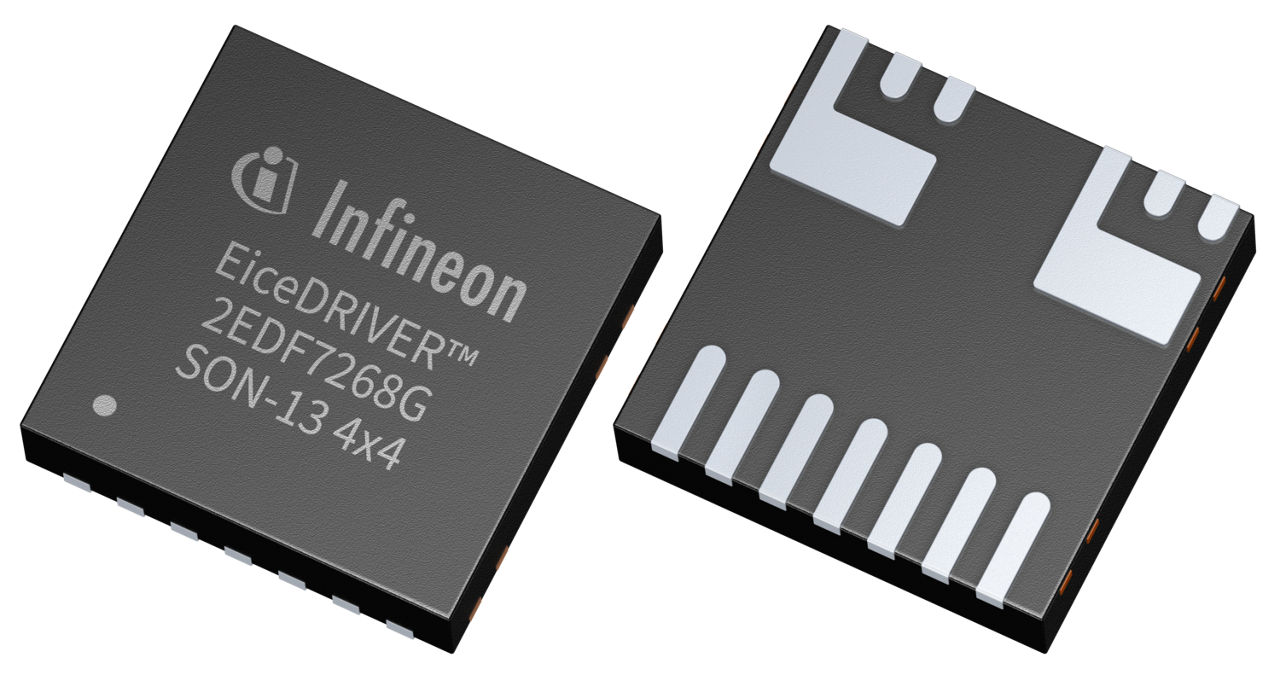

The EiceDRIVER™ 2EDF7268G is a dual channel isolated gate driver IC with floating outputs. This strong 5 A / 9 A source/sink dual chanel gate driver comes with a high 100 V/ns CMTI (common mode transient immunity) for robost operation with MOSFETs and GaN HEMTs in high-power switching noise environments. The 2EDF7268G is available in a 13-pin VSON 4x4 mm package with thermal pads, delivering a compact footprint with strong thermal performance.

Features

  • Dual Channel Isolated Gate Driver
  • 1500 V rms input-to-output isolation
  • Robust 100 V/ns CMTI
  • Strong 5 A / 9 A output stage
  • Short propogation delay of 38ns
  • +9 / -5ns in-out prop. delay accuracy
  • <2 us UVLO recovery time
  • 1.2 V Output clamping threshold
  • 13-pin SON 4x4 mm
  • 10 K/W Rthjb with exposed pads

Benefits

  • Compact and thermally capable solution
  • Robust isolation
  • Tight timing for increased efficiency
  • Reliable at high switching frequencies
  • PMOS source increases turn-on efficiency
