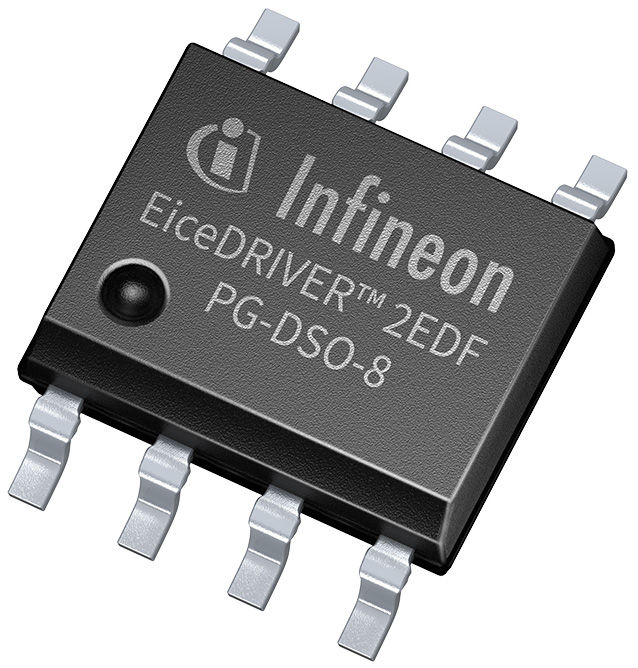

2EDF5215F

Fast, robust, dual-channel, high side isolated gate driver with accurate and stable timing and high current output
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2EDF5215F
2EDF5215F
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge: High-side and low-side
  • Isolation Type
    High-Side Galvanic isolation - Functional
  • Output Current
    5 A
  • Package
    PG-DSO-8
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    36 ns
  • Turn On Propagation Delay
    38 ns
  • Voltage Class
    250 V
Recommended
OPN
2EDF5215FXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Designed to drive low-side and high-side MOSFETs, a strong output stage, together with a low part-to-part skew and fast signal propagation, makes these products ideal for use in fast-switching power systems. The outputs are matched with a maximum 4 ns propagation delay enabling the use of lower dead-time in half-bridge and perfect synchronization in diagonal driving.

Features

  • 250 V high and low-side gate driver
  • -250 V negative HS transient immunity
  • 100 V/ns dV/dt robustness
  • 5 A / 9 A source / sink capability
  • +9 ns /-5 ns delay accuracy
  • 4 ns max delay matching
  • 1.2 V output clamping threshold in UVLO
  • <2 μs fast start-up time

Benefits

  • High-side channel isolation
  • Flexible: Independent channels
  • robustness against ground noise
  • Great signal synchronization
  • Reliable for high switching frequencies
  • Safe operation during system start-up
  • Optimal operation in bootstrap supply
