2ED2181S06F

650 V, 2.5 A high current high-side and low-side gate driver IC with integrated bootstrap diode in DSO-8 package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED2181S06F
2ED2181S06F
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    High-side and low-side
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Sink)
    2.5 A
  • Output Current (Source)
    2.5 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    200 ns
  • Turn On Propagation Delay
    200 ns
  • VBS UVLO (Off)
    7.2 V
  • VBS UVLO (On)
    8.2 V
  • VCC UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    9.1 V
  • Voltage Class
    650 V
Recommended
OPN
2ED2181S06FXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
650 V high and low side gate driver with high current, and high speed to drive MOSFET and IGBT , with typical 2.5 A sink and source current in DSO-8 package. The DSO-14 package version for bigger creepage is also available: 2ED21814S06J .Based on Infineon’s SOI-technology , having excellent ruggedness and noise immunity against negative transient voltages on VS pin. No parasitic thyristor structures present in the device, hence no parasitic latch up at all temperature and voltage conditions.

Features

  • Op. voltages (VS node) < + 650 V
  • Neg. VS transient immunity of 100 V
  • Integr. ultra-fast bootstrap diode
  • Floating channel for bootstrap op.
  • Maximum supply voltage of 25 V
  • Independent UVLO for both channels
  • 200 ns propagation delay
  • HIN, LIN input logic
  • Logic op. up to –11 V on VS Pin
  • Neg. voltage tol. on inputs of –5 V
  • For high side switches

Diagrams

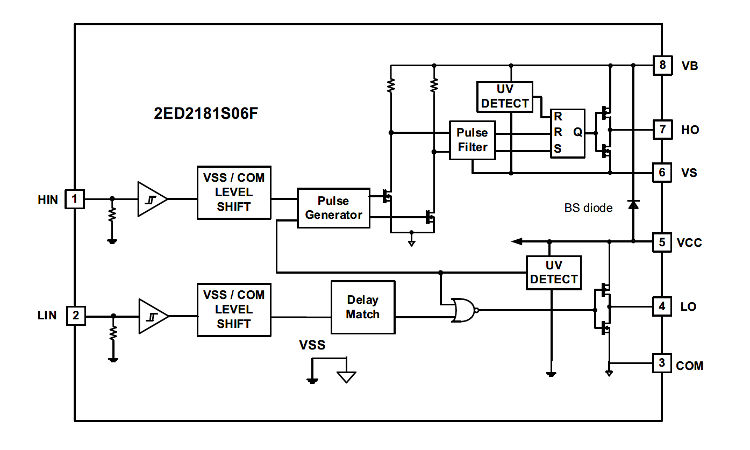

Block_2ED2181S06F
