2DIB1400F

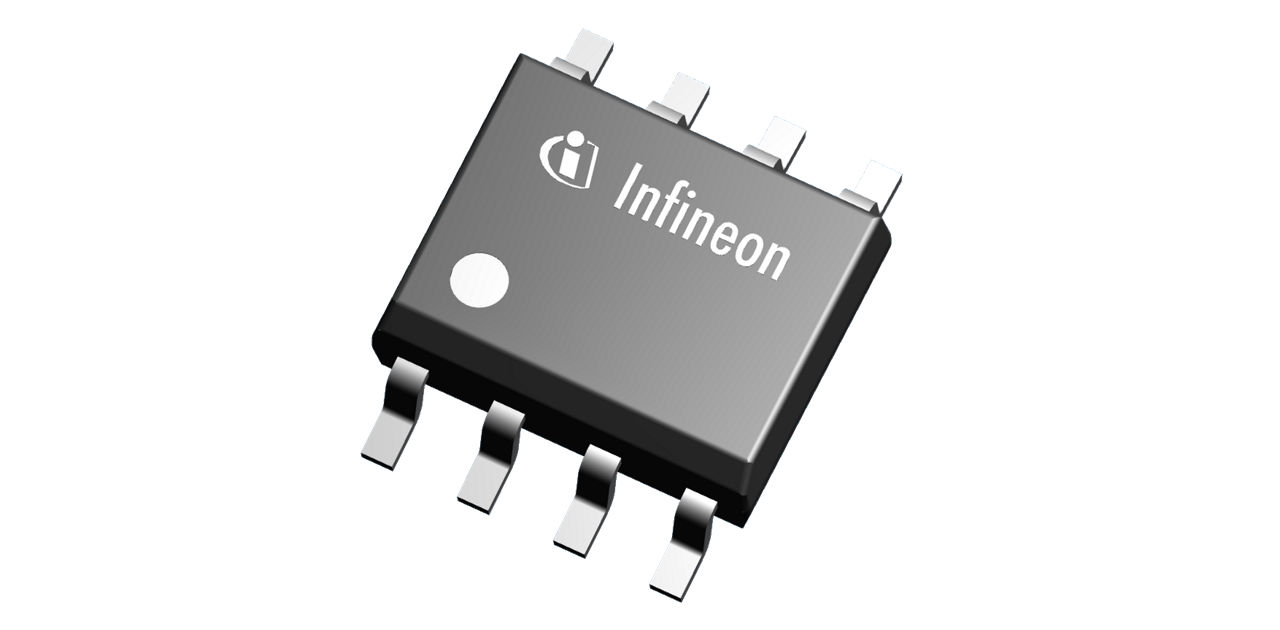

Dual-channel digital isolator 2DIB1400F in DSO-8 narrow body package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2DIB1400F
2DIB1400F
ea.
Data Sheet

Product details

  • Channel Configuration
    1+1
  • CMTI kV/µs
    100
  • Data Rate
    40 Mbps
  • Default output state
    Low
  • Output enable
    CMOS
  • Viso
    3000 V
  • Vout Isolated supply voltage
    2.5 V to 6.5 V
Recommended
OPN
2DIB1400FXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon’s ISOFACE™ dual-channel digital isolator 2DIB1400F (with 1 forward channel and 1 reverse channel) provides robust isolation for high-voltage applications. With a wide supply voltage range, CMOS input thresholds and default output state low, it is the perfect fit for high-side floating drive applications with feedback.

Benefits

  • High immunity system noise / high dv/dt
  • High system power efficiency
  • Reliable low default O/P state if fail
  • Simplified system certification process
  • Easy device replacement & alt sourcing
