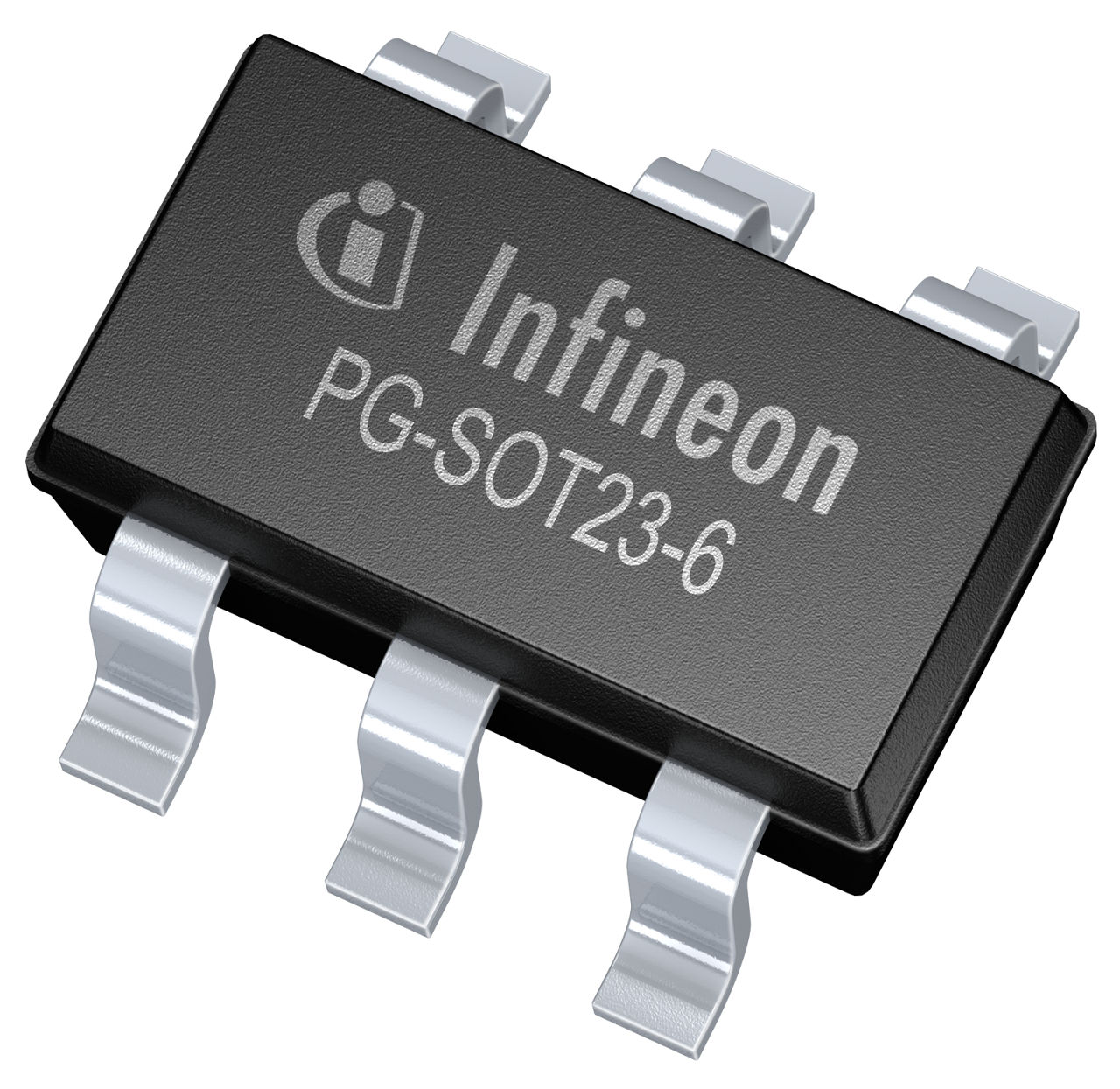

1EDN8550B

1-channel non-isolated gate-driver IC family with truly differential inputs
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1EDN8550B
1EDN8550B
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.26
  • Channels
    1
  • Configuration
    Low-side, High-side
  • Input Vcc
    8 V to 20 V
  • Isolation Type
    Non-isolated
  • Output Current (Sink)
    8 A
  • Output Current (Source)
    4 A
  • Package
    PG-SOT23-6
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    45 ns
  • Turn On Propagation Delay
    45 ns
  • VBS UVLO (On)
    8 V
  • VBS UVLO (Off)
    7 V
  • VCC UVLO (On)
    8 V
  • VCC UVLO (Off)
    7 V
  • Voltage Class
    200 V
Recommended
OPN
1EDN8550BXTSA1
Product Status active and preferred
Infineon Package
PG-SOT23-6
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT23-6
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 1EDN8550B is a non-isolated gate-driver IC and available in a small SOT-23 package. It has truly differential inputs enabling cost-effective solutions with exceptional power density in:Boost-PFC with Kelvin-source MOSFETsSynchronous rectification stagesDesigns with long distance between control IC and gate-driver ICBuck-boost convertersLow- and medium-voltage half-bridgesHigh density 48V to 12V intermediate bus converter

Features

  • Truly differential inputs
  • 4A source current
  • 8A sink current
  • Separate source/sink outputs
  • Low-ohmic output stage
  • 29ns input minimum pulse width
  • 5A reverse current robustness of the o/p
  • 8V UVLO version
  • SOT-23 package, 6 pins

Benefits

  • Robust
  • PCB layout flexibility
  • High power density
  • Short time to market
