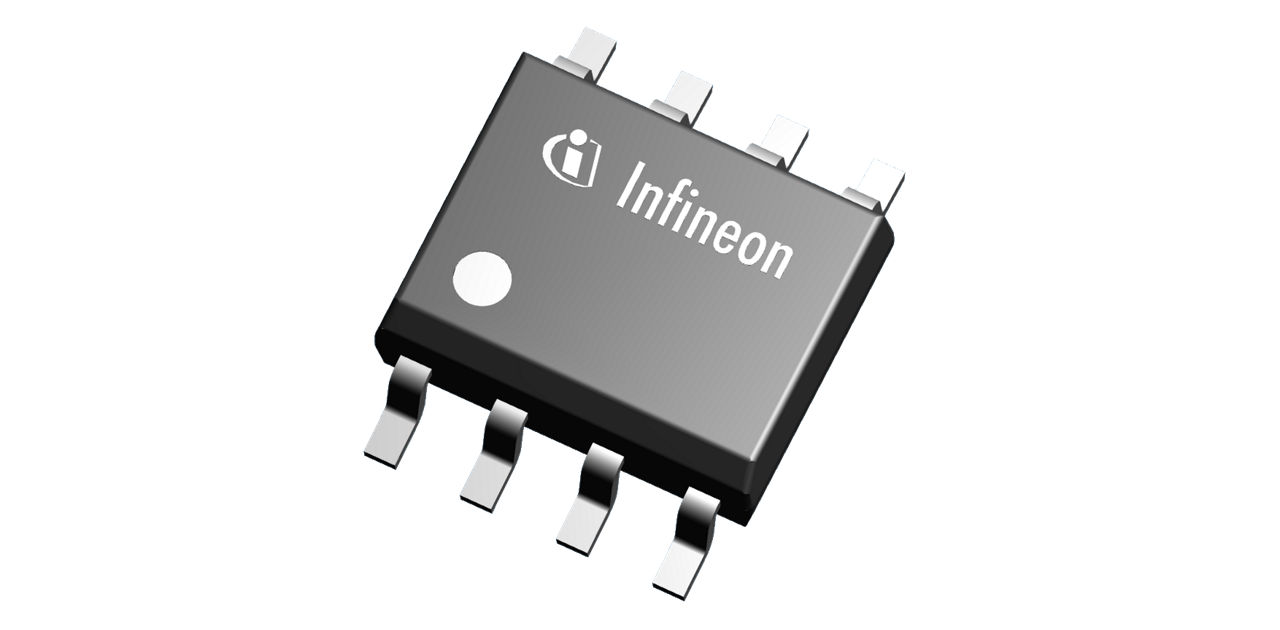

1EDL8011

125 V high-side gate driver with single output in DSO-8 package for battery-powered applications
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1EDL8011
1EDL8011
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    8 V to 125 V
  • Isolation Type
    Non-isolated
  • Output Current (Sink)
    1 A
  • Package
    PG-DSO-8-92
  • Qualification
    Industrial
  • Voltage Class
    125 V
Recommended
OPN
1EDL8011XUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The EiceDRIVER™ 1EDL8011 provides fast turn-on/ turn-off of high-side N-channel MOSFETs with its powerful gate current capabilities. For battery-powered applications, 1EDL8011 is used to manage inrush current & protects in case of faults. The driver is available in DSO-8 package including OCP protection feature, adjustable current setting threshold, time delay and a safe start-up mechanism with flexible blanking during MOSFET turn-on transitions.

Features

  • Maximum input voltage 125 V
  • Strong driver for fast turn-off
  • Strong charge pump for fast start-up
  • VDS sense for overcurrent protection
  • Internal charge pump

Benefits

  • Adjustable current trip threshold
  • Adjustable time delay
  • Adjustable start-up blanking
  • High-side protection from inrush current
