not for new design
RoHS Compliant
Lead-free

1EDI2004AS

The 1EDI2004AS is a high-voltage IGBT gate driver designed for automotive motor drives above 5 kW
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1EDI2004AS
1EDI2004AS
Data Sheet

Product details

  • Channels
    1
  • Classification
    ISO 26262-compliant
  • Configuration
    High-side
  • Family
    EiceDRIVER™ isolated gate driver ICs for EV
  • Input Vcc
    4.65 V to 5 V
  • Isolation Type
    Galvanic isolation - Basic
  • Output Current
    2 A
  • Output Current (Sink)
    2 A
  • Output Current (Source)
    2 A
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • Voltage Class
    1200 V
OPN
1EDI2004ASXUMA1
Product Status not for new design

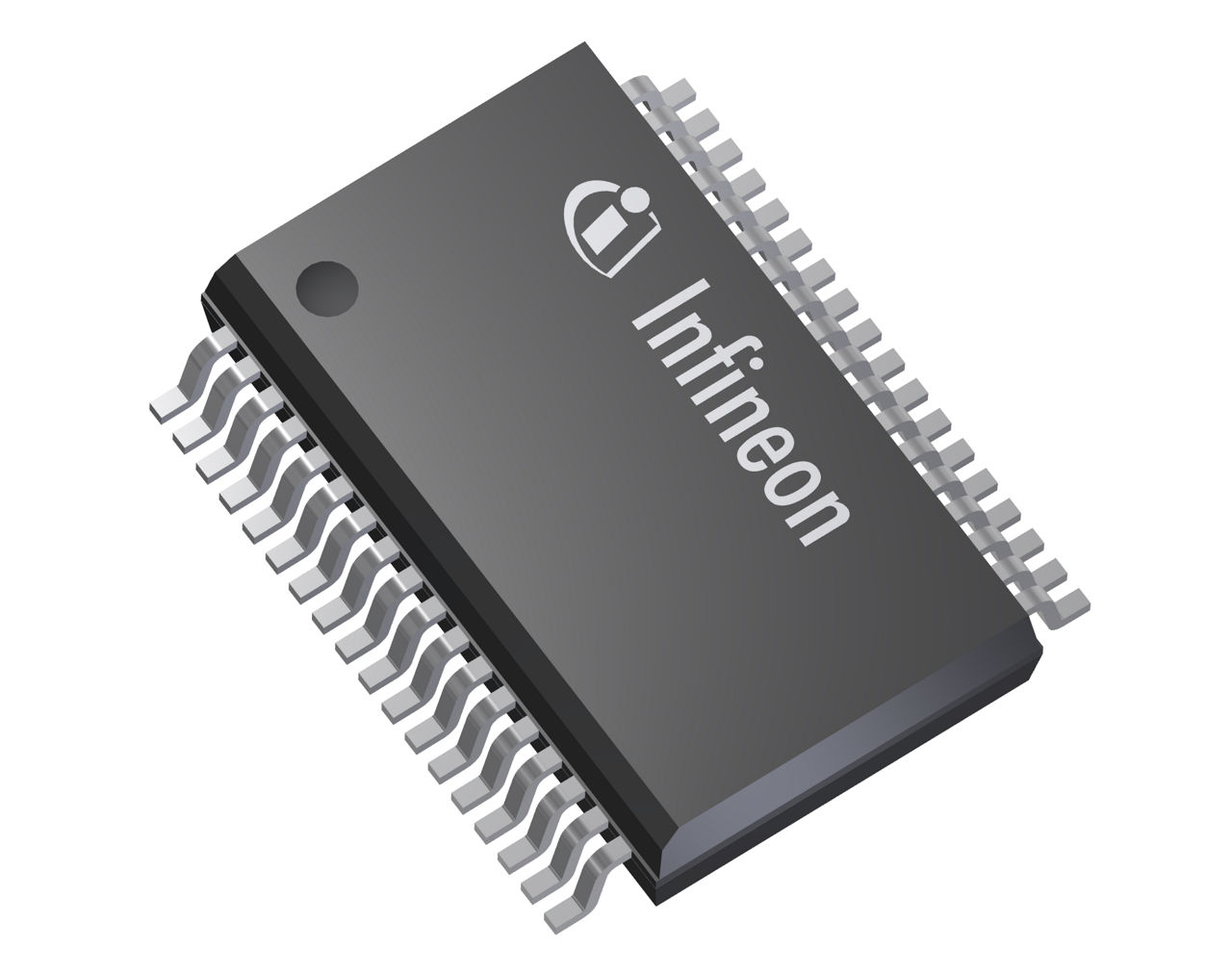

Infineon Package
PG-DSO-36
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
PG-DSO-36
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The 1EDI2004AS utilizes Infineon's Coreless Transformer (CLT) for galvanic isolation. It supports 400 V, 600 V, and 1200 V IGBT technologies, with a 5 V logic connection and SPI interface for control. It has minimal PWM signal distortion, integrated safety functions, and works well with Infineon's 1EBN100XAE "EiceDRIVER™ Boost" booster stage family.

Features

  • Single-channel IGBT driver
  • On-chip galvanic insulation (up to 6 kV)
  • Support 600 V & 1200 V IGBT technologies
  • Low propagation delay
  • Support of 5 V logic levels(primary side)
  • 16-bit standard SPI interface
  • Pseudo-differential inputs
  • Power-On reset pin (primary side)
  • Debug mode

Diagrams

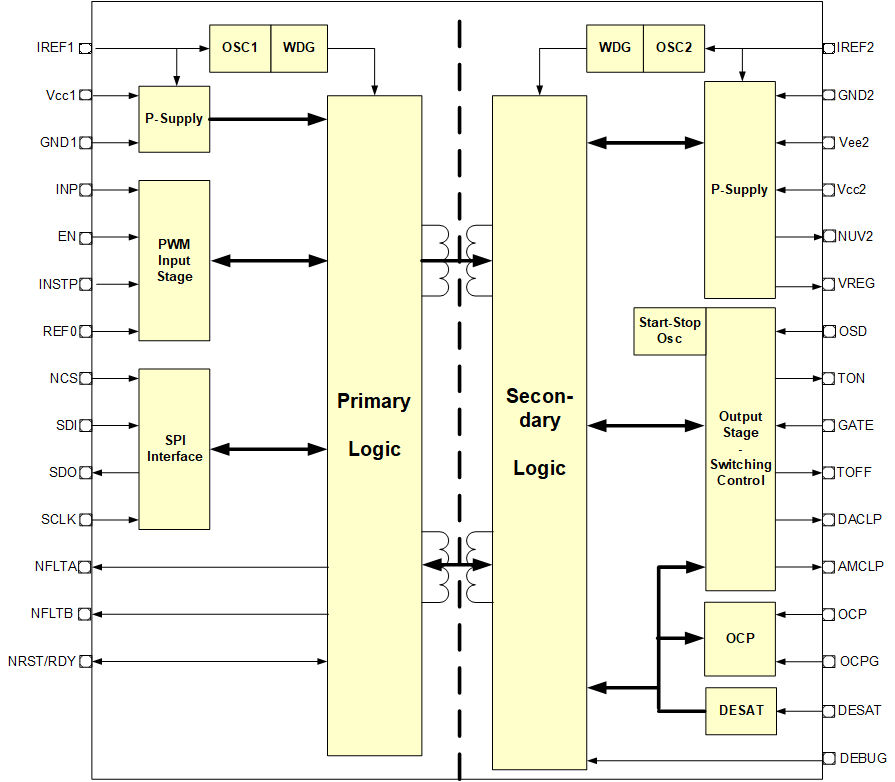

1EDI2004AS_Driver_blockdiag
1EDI2004AS_Driver_blockdiag
1EDI2004AS_Driver_blockdiag 1EDI2004AS_Driver_blockdiag 1EDI2004AS_Driver_blockdiag
×
